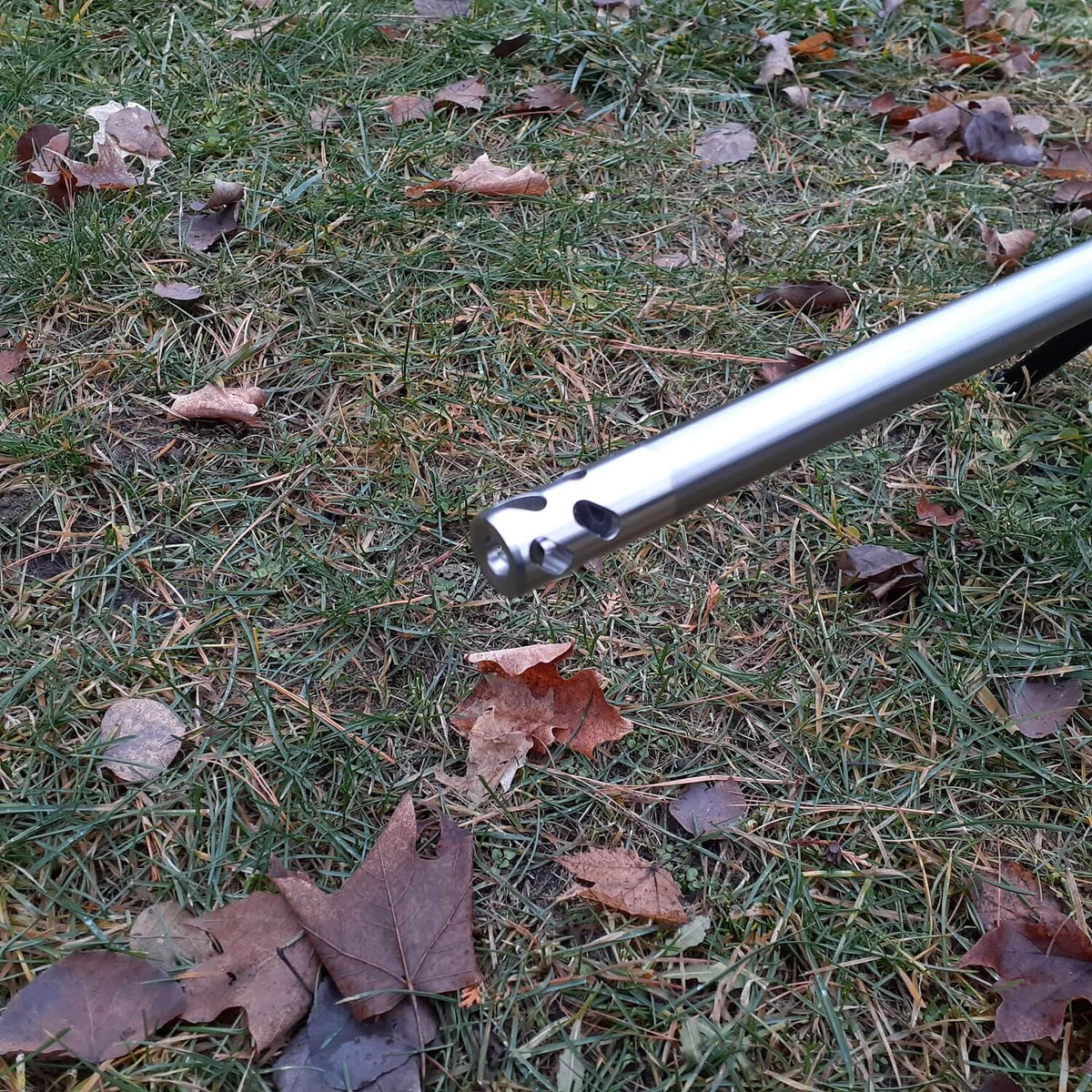

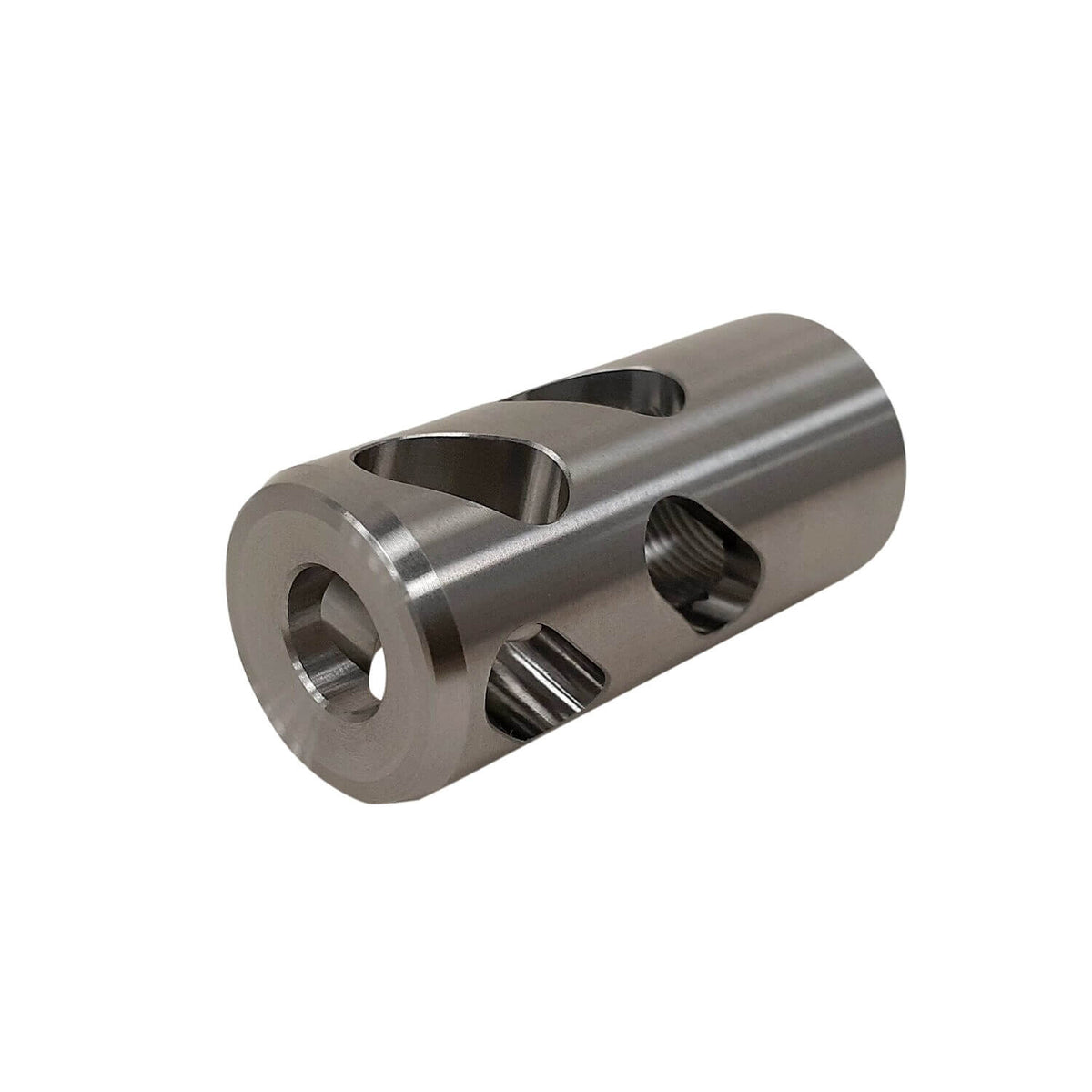

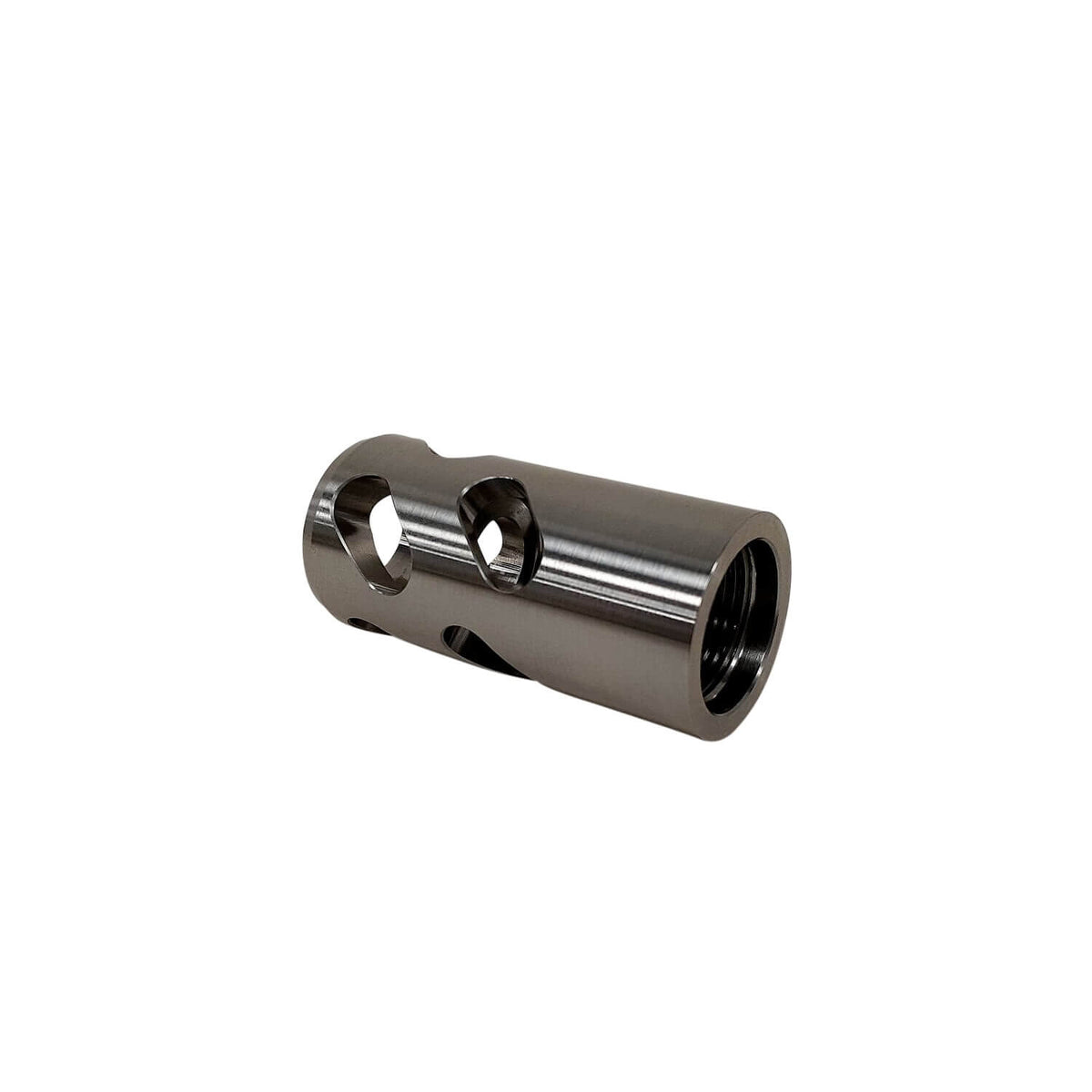

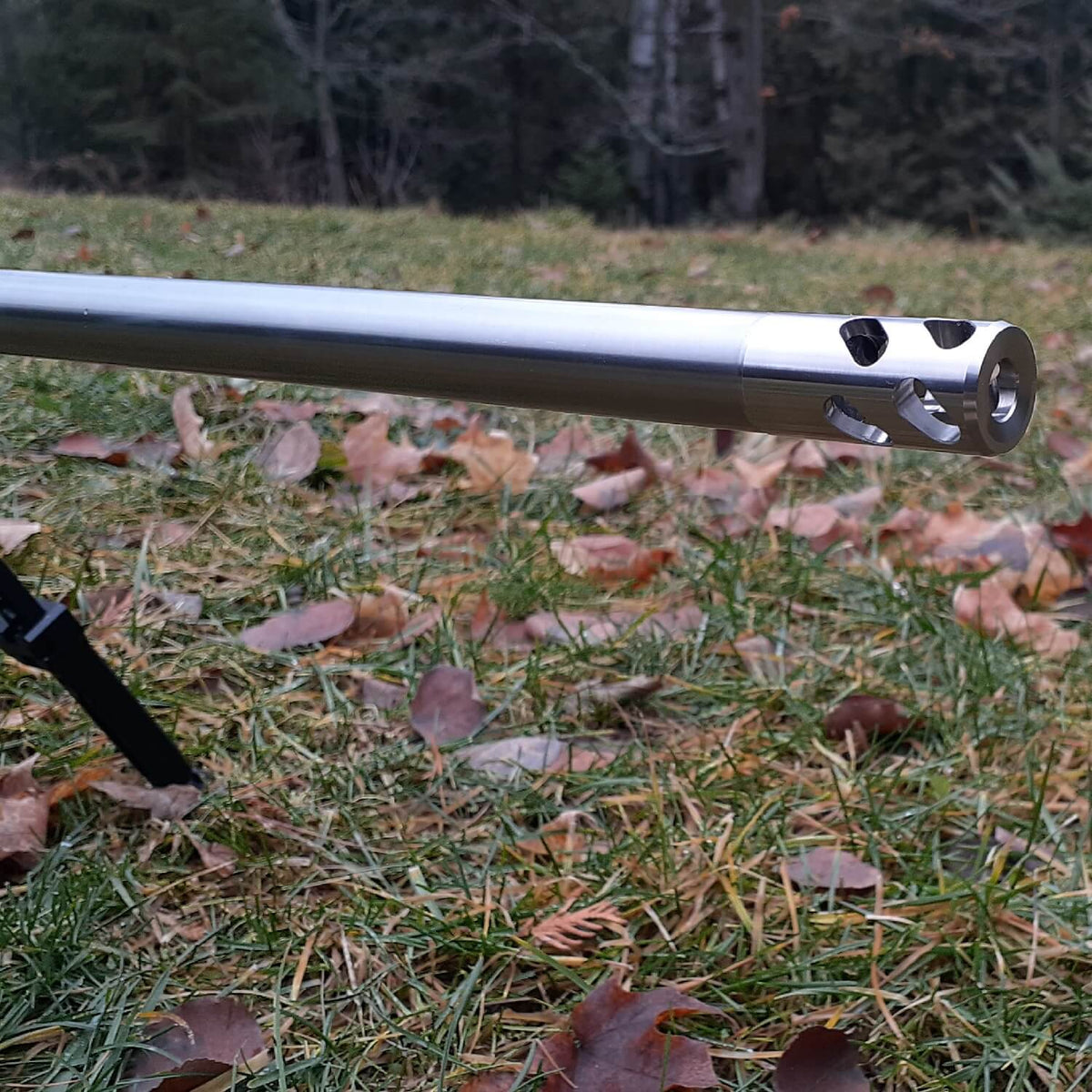

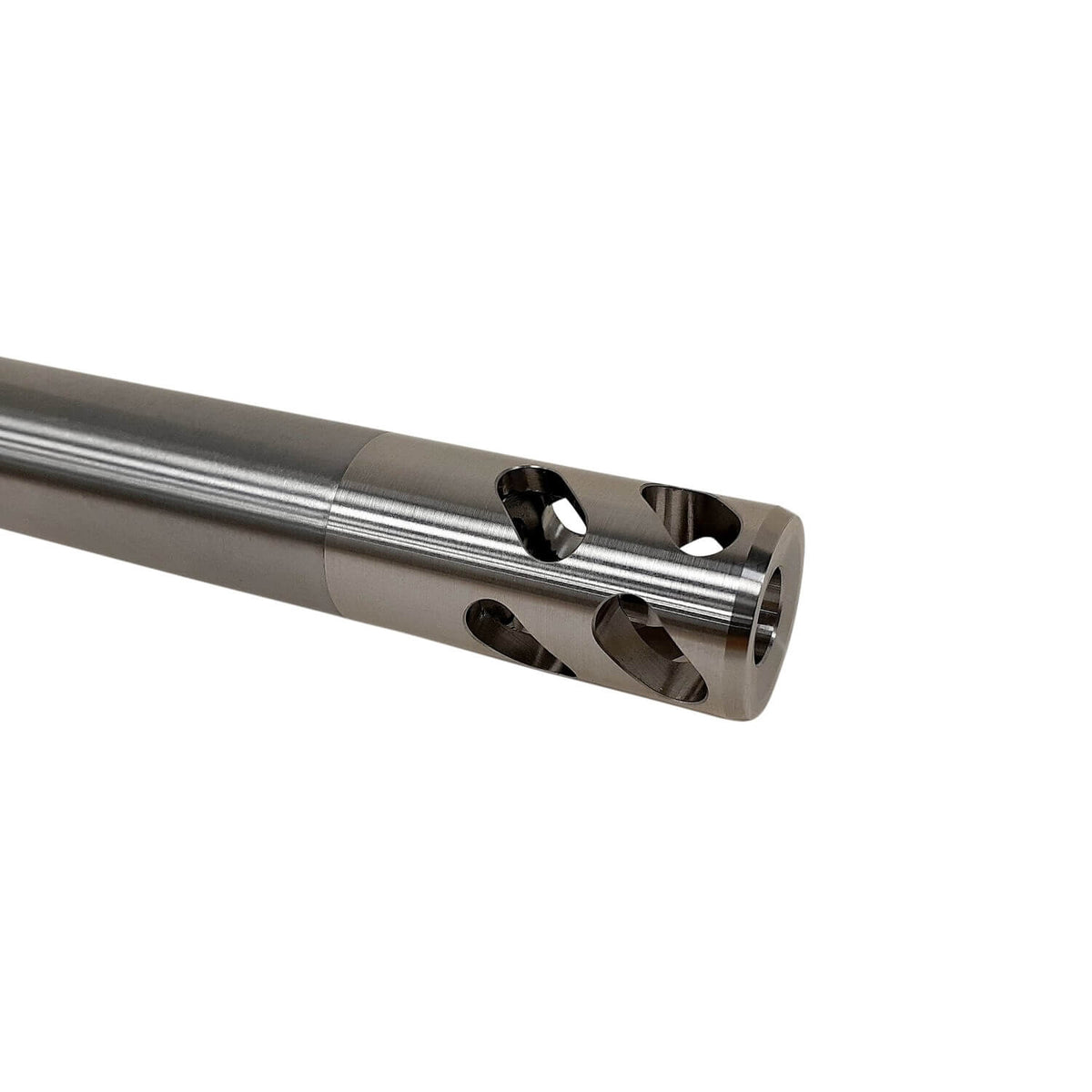

For Remington Varmint / Sendero contours, Proof Research Light Sendero. True 2-baffle radial brake: 90° radial ports intersect to form expansion chambers and real baffles for recoil reduction without concussion. .840" in diameter and adds only 1.125" forward of the muzzle.
Specifications
| Design | True 2-baffle radial |
|---|---|
| Diameter | .840" |
| Length | 1.750" |
| Added length | 1.125" forward of the muzzle |
| Back taper | Varies by option (see below) |
| Minimum turn diameter | .780" (can be turned down or back tapered) |
| Weight | Varies by option (see below) |
| Material | 17-4 PH stainless steel |
| Installation | Tensioning key included; no strap wrench needed |
| Fits | Remington Varmint / Sendero contours, Proof Research Light Sendero |
Available options
| Thread Pitch | Bore (Caliber) | Finish | Weight |
|---|---|---|---|

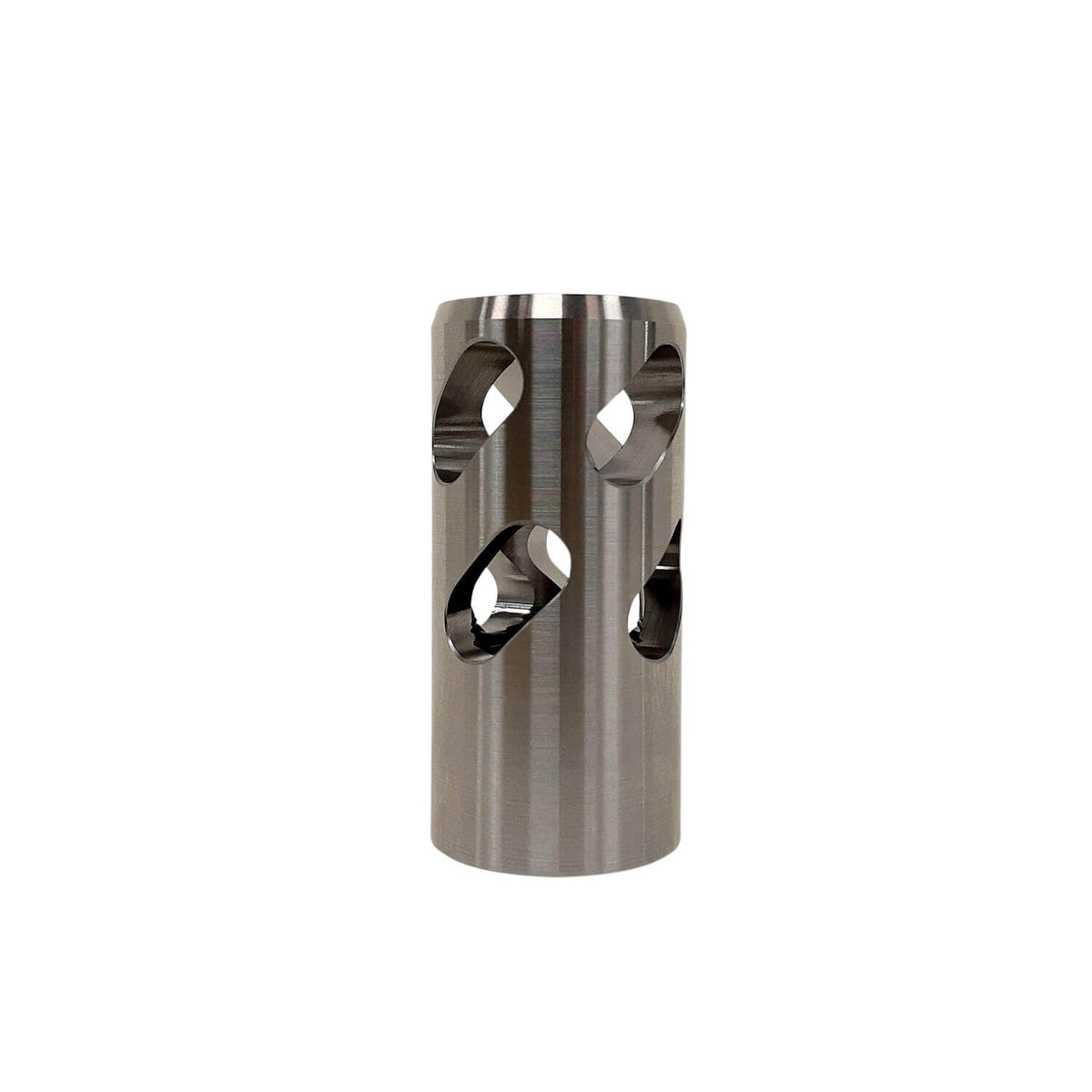

| 1/2-28 | .30/7mm | Stainless | 62 g / 2.19 oz |
| 5/8-24 | .30/7mm | Stainless | 52 g / 1.83 oz |
| 5/8-24 | .338 | Stainless | 52 g / 1.83 oz |

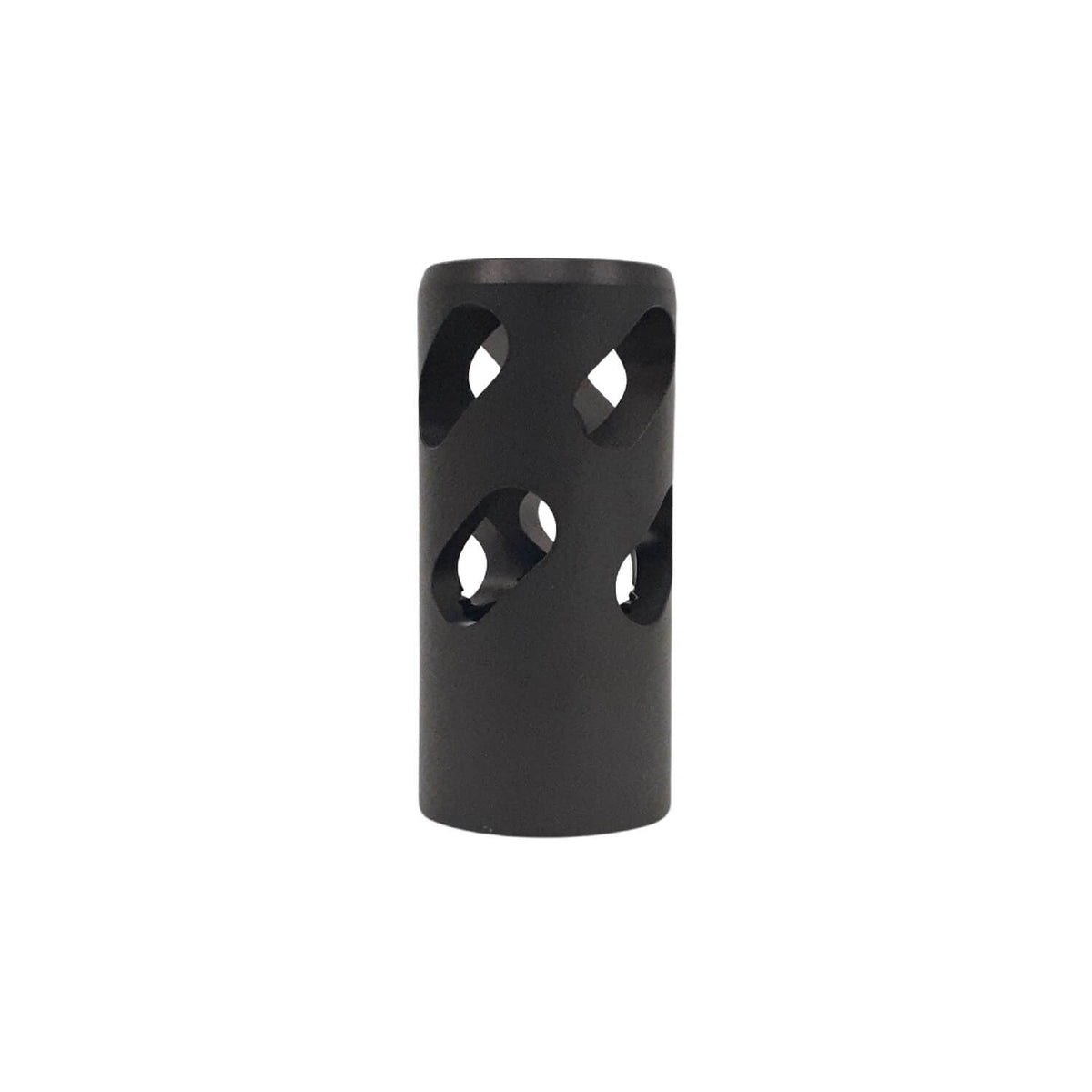

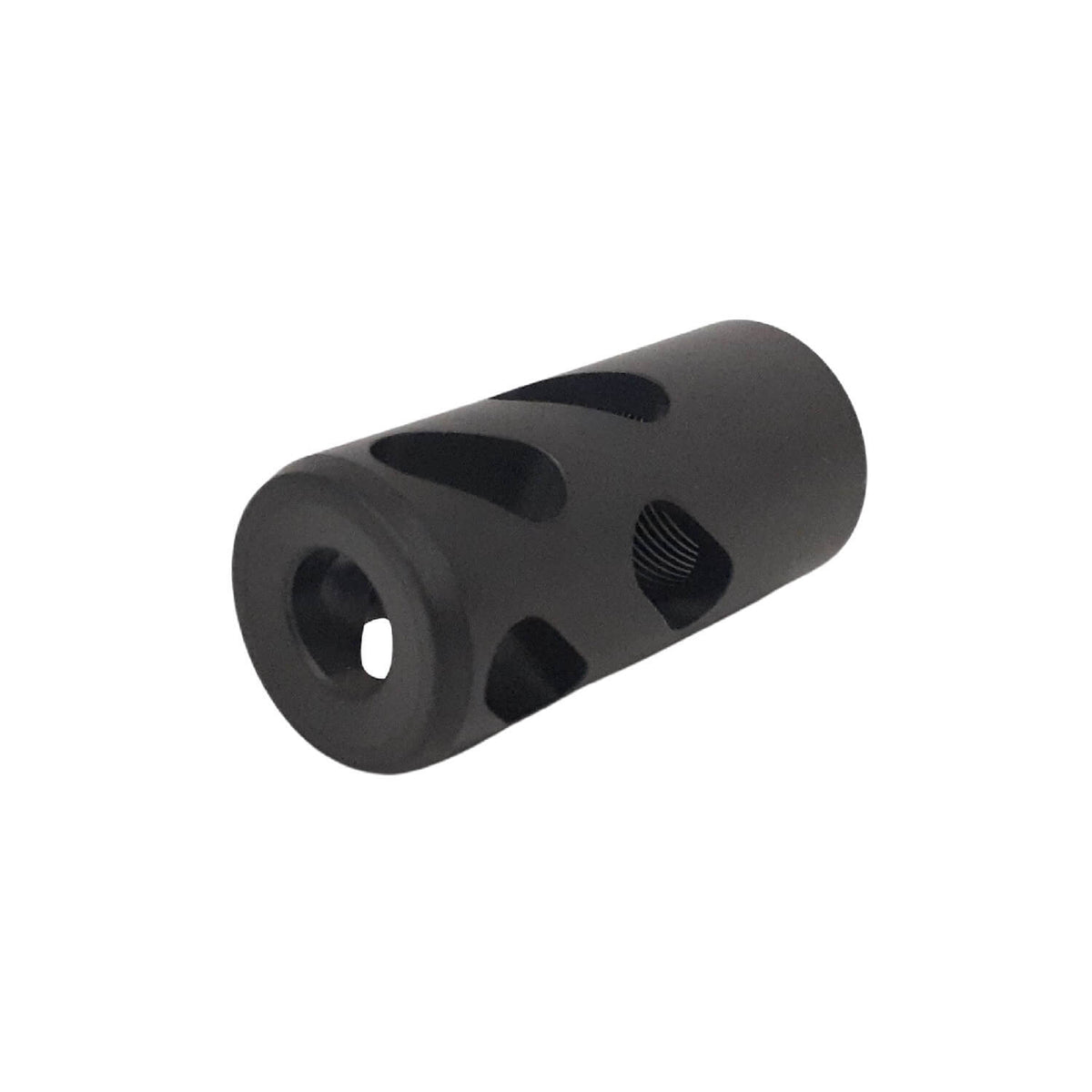

| 1/2-28 | .30/7mm | Black Nitride | 62 g / 2.19 oz |
| 5/8-24 | .30/7mm | Black Nitride | 52 g / 1.83 oz |
| 5/8-24 | .338 | Black Nitride | 52 g / 1.83 oz |
Choose a bore that matches or exceeds your caliber.
Installation
- Make sure the firearm is completely unloaded.
- Confirm the brake bore matches or exceeds your caliber.
- Remove the factory thread protector or muzzle device, and any O-ring on the threads.

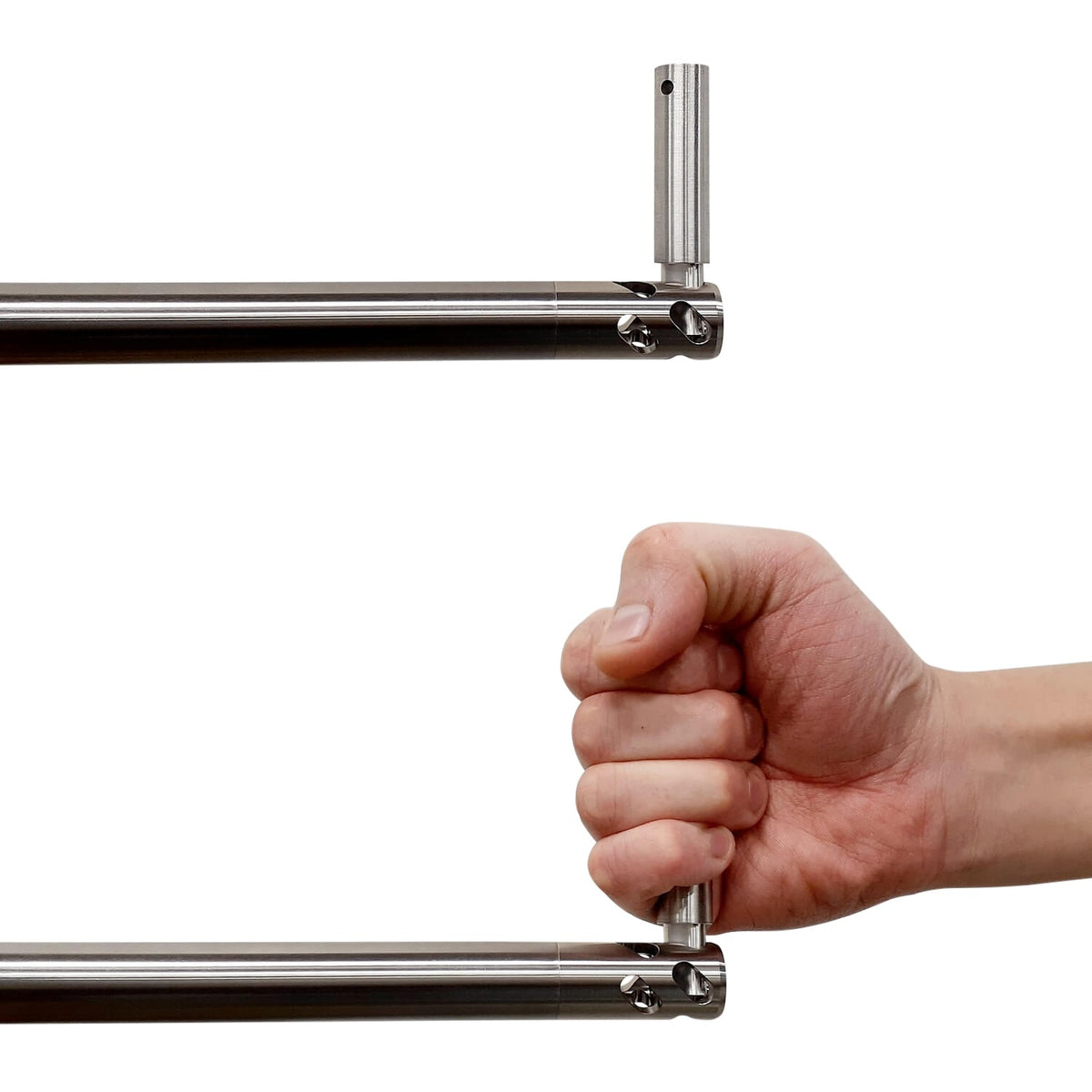

- Thread the brake on and hand tighten with the included tensioning key, using the ports nearest the crown.
- Remove the key after tightening.
Precision machined by Spearhead Machine in Canada.
