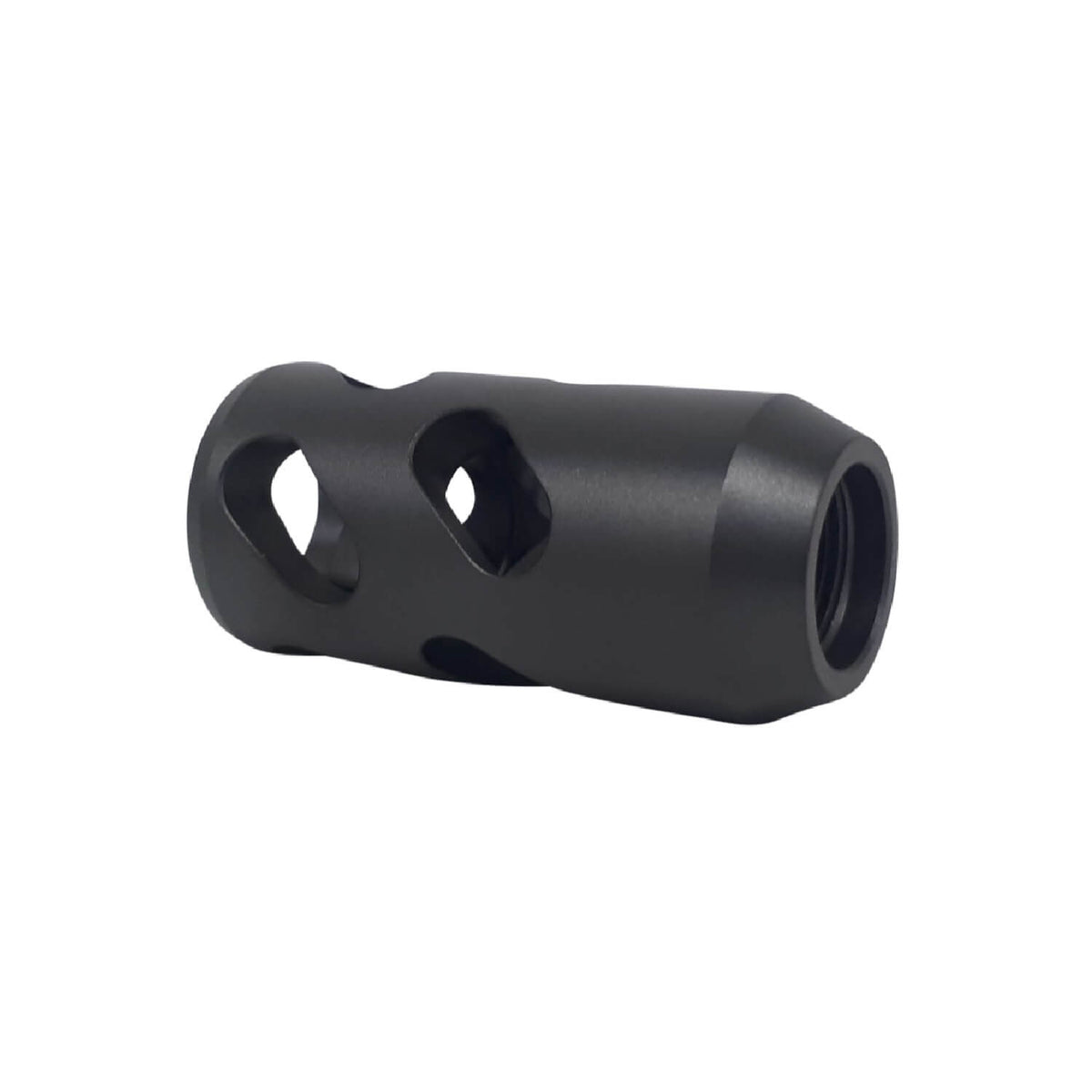

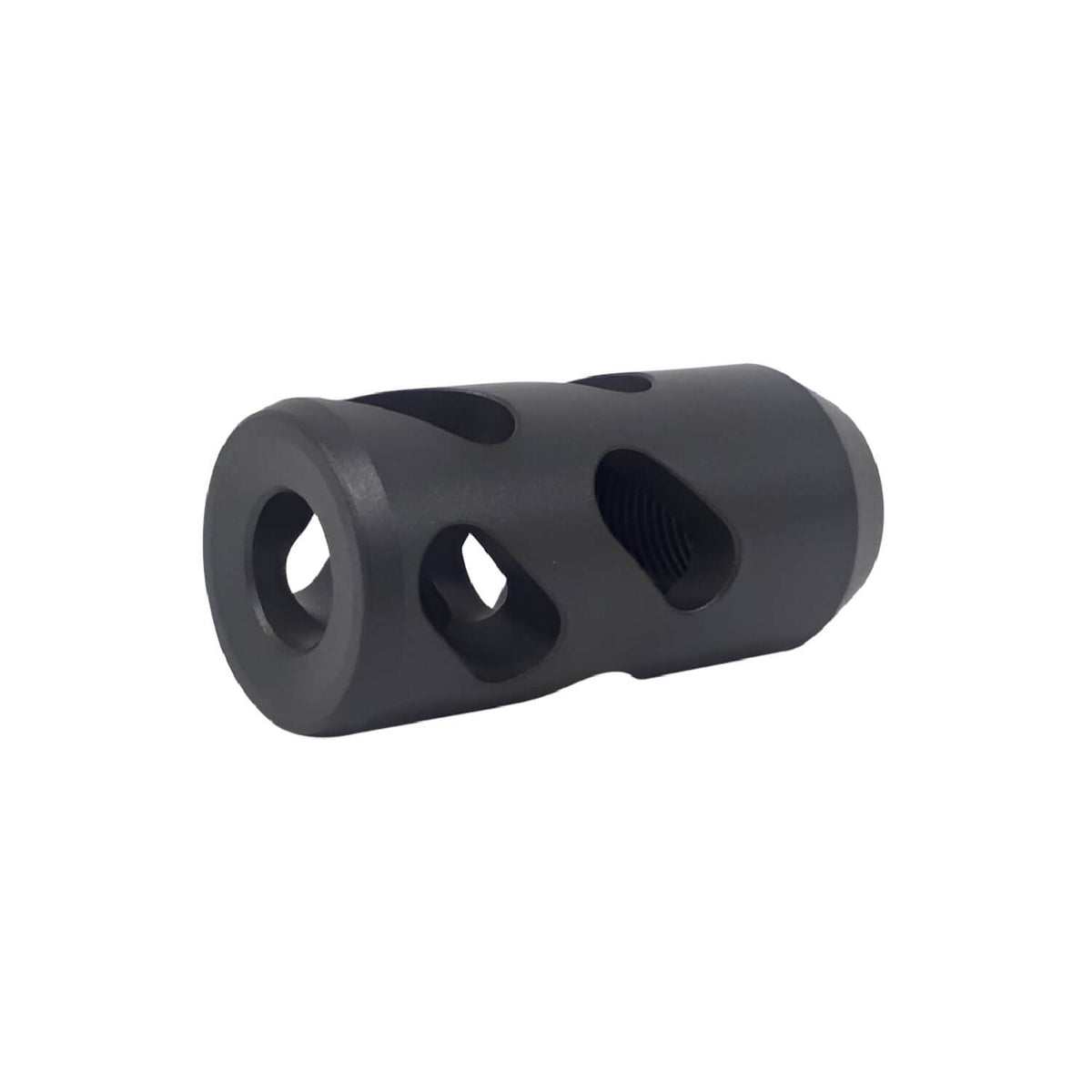

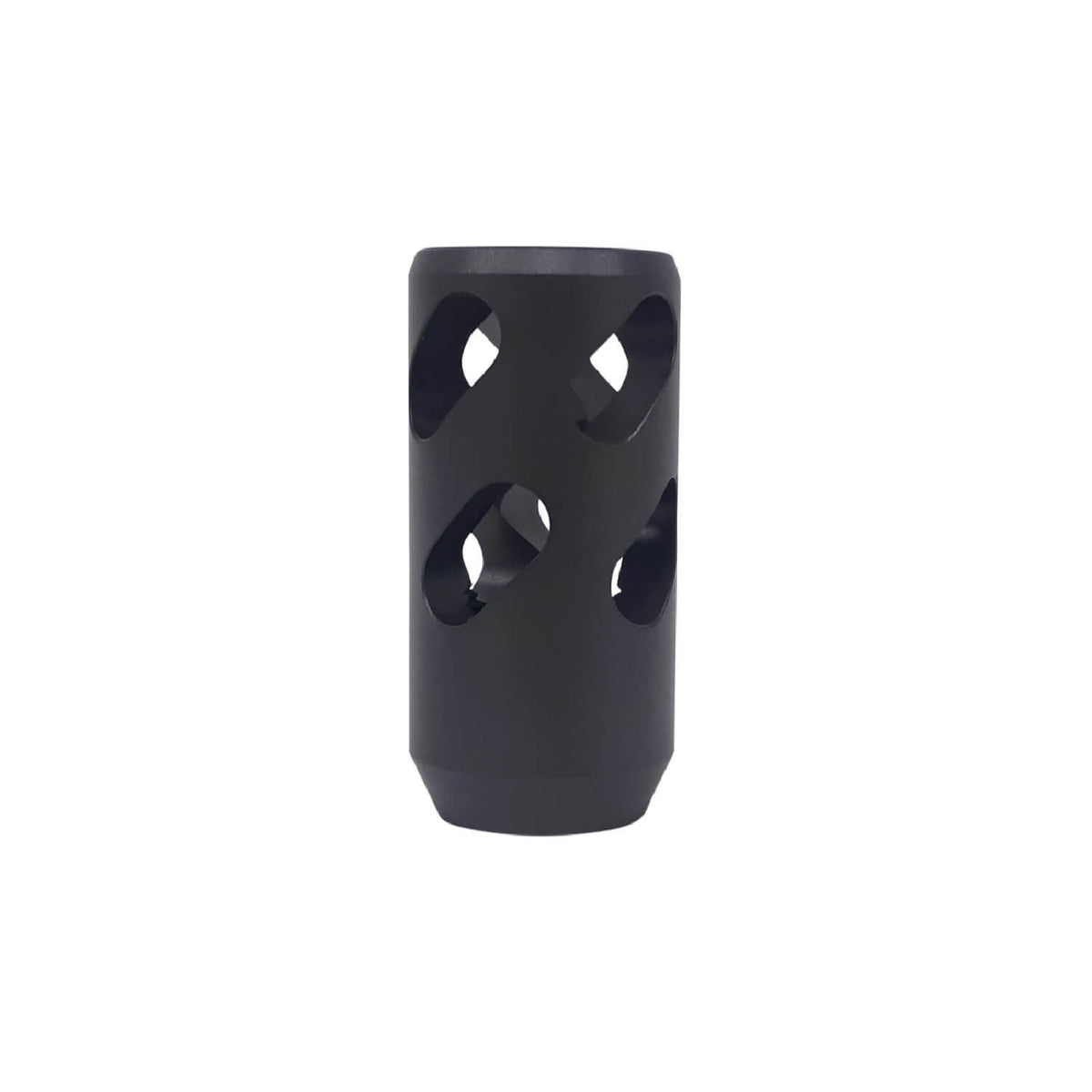

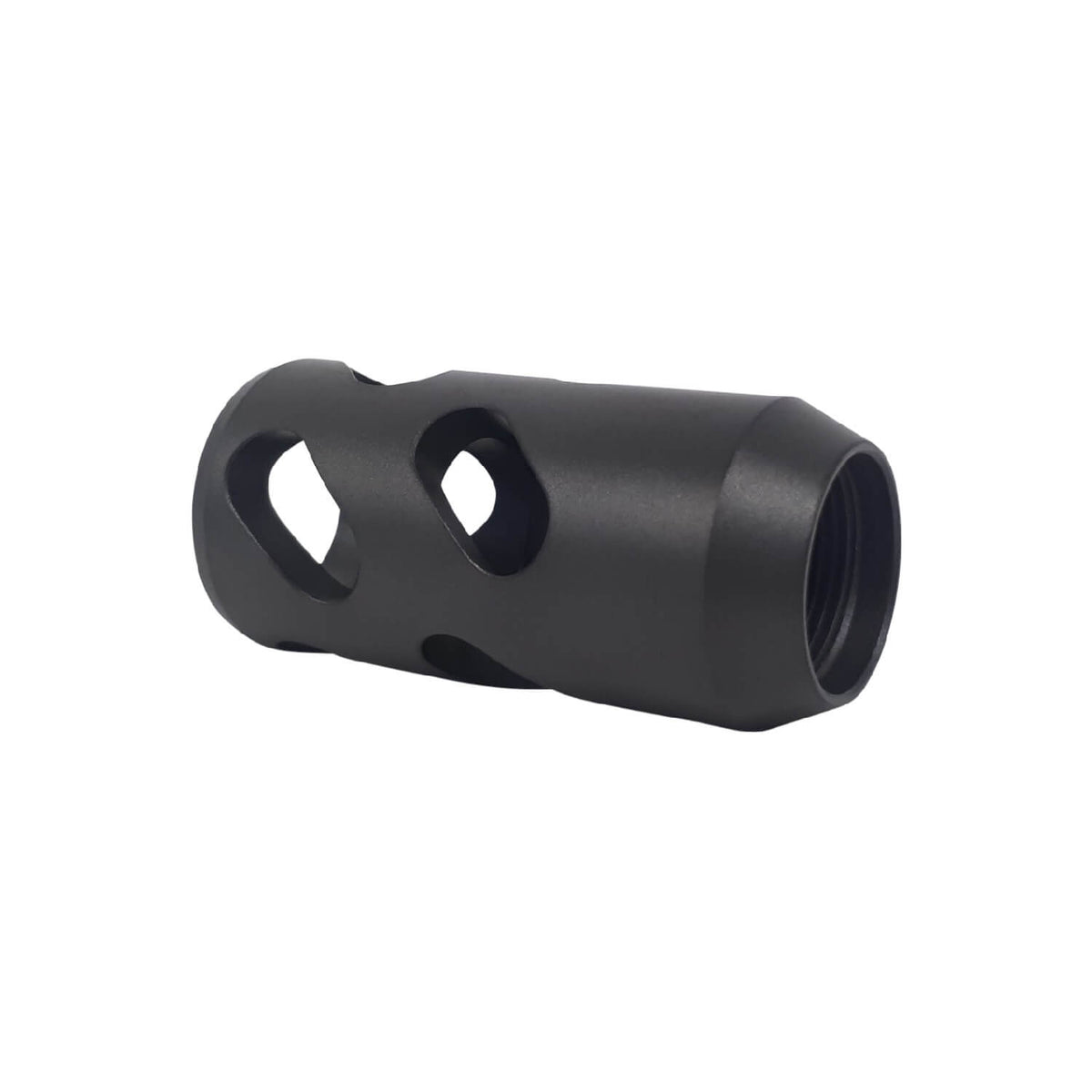

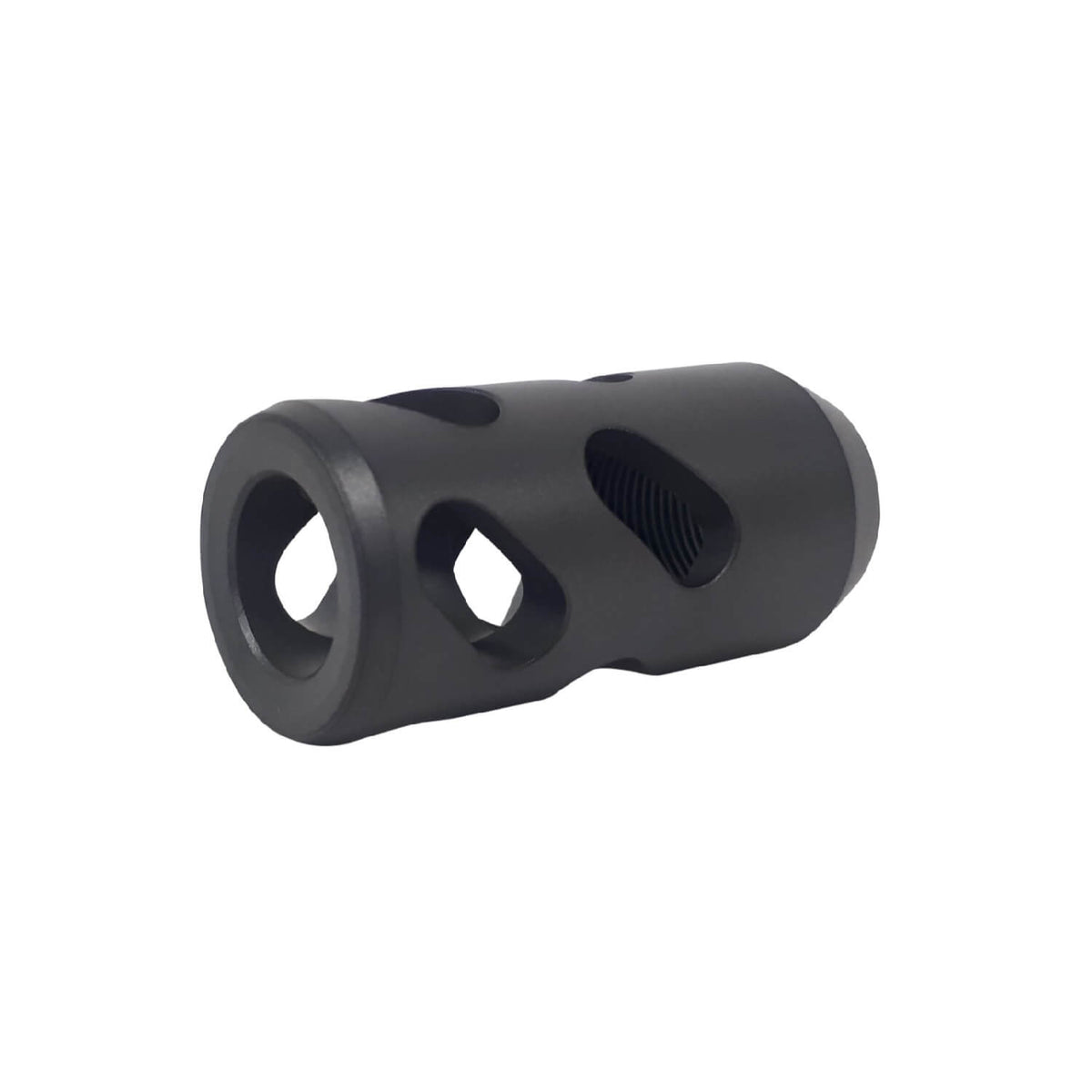

Built for the Chiappa 1892 Take Down Wildlands (16.5") / 1892 NSR (12"). True 2-baffle radial brake: 90° radial ports intersect to form expansion chambers and real baffles for recoil reduction without concussion. It stays slim at .840" and sits clean on the barrel, adding only 1.125" forward of the muzzle.
Fitment & notes
- Two thread versions: check your barrel. The 1892 NSR 12" is M13.5×1 LH only
Specifications
| Design | True 2-baffle radial |
|---|---|
| Diameter | .840" |
| Length | 1.750" |
| Added length | 1.125" forward of the muzzle |
| Back taper | Varies by option (see below) |
| Weight | 50 g / 1.76 oz |
| Material | 17-4 PH stainless steel |
| Installation | Tensioning key included; no strap wrench needed |
| Fits | Varies by option (see below) |
Available options
| Thread Pitch | Bore (Caliber) | Back taper / collar | Fits |
|---|---|---|---|
| M13.5×1 LH Wildland 16.5″/NSR 12″ | .357 Magnum | .650" | 1892 Wildlands 16.5" (M13.5×1 LH) or 1892 NSR 12" |
| M13.5×1 LH Wildland 16.5″/NSR 12″ | .44 Magnum | .650" | 1892 Wildlands 16.5" (M13.5×1 LH) or 1892 NSR 12" |
| 5/8-24 Wildland 16.5" | .357 Magnum | .740" | 1892 Wildlands Take Down 16.5" (5/8-24) |
| 5/8-24 Wildland 16.5" | .44 Magnum | .740" | 1892 Wildlands Take Down 16.5" (5/8-24) |
Choose a bore that matches or exceeds your caliber.
Installation
- Make sure the firearm is completely unloaded.
- Confirm the brake bore matches or exceeds your caliber.
- Remove the factory thread protector or muzzle device, and any O-ring on the threads.

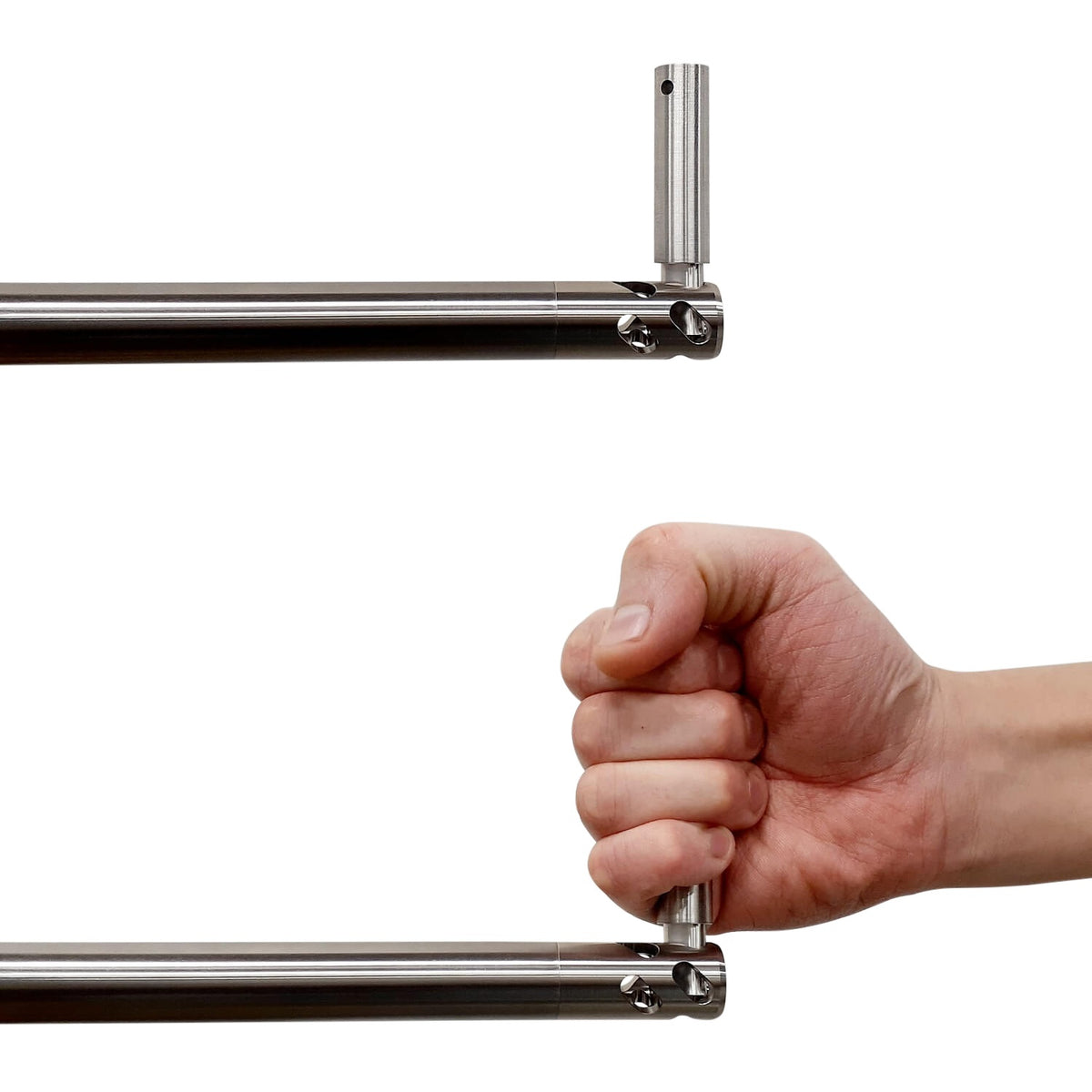

- Thread the brake on and hand tighten with the included tensioning key, using the ports nearest the crown.
- Remove the key after tightening.
Precision machined by Spearhead Machine in Canada.
$97.57
