Self-timing hybrid top + side port brake with proprietary linked port (double expansion chamber). The hybrid top and side ports keep the muzzle down so you can watch your impacts, and the self-timing collar installs by hand. Built for .22 LR, AR and bolt rifles.
Fitment & notes
- Limited edition drop
- 1/2-28 fits Ruger Precision Rimfire, Bergara B-14R, Vudoo V-22, Tikka T1x .22 LR, RimX prefit barrels
Specifications
| Design | 3-port self-timing |
|---|---|
| Diameter | 1.0" brake body, 1.1" locking collar |
| Length | 2.367" |
| Back taper | Varies by option (see below) |
| Weight | 126 g / 4.45 oz |
| Material | 17-4 PH stainless steel |
| Coating | Copper PVD (physical vapor deposition) |
| Installation | Self-timing locking collar, tensioning key included; no tools needed |
| Leveling | Leveling flat on the bottom for precise leveling |
| Fits | .22 LR, AR and bolt rifles |
Available options
| Thread Pitch | Bore (Caliber) | Finish |
|---|---|---|
| 1/2-28 | .22LR/.223/6mm | Copper PVD |
Choose a bore that matches or exceeds your caliber.
Installation
- Make sure the firearm is completely unloaded.
- Confirm the brake bore matches or exceeds your caliber.
- Remove the factory thread protector or muzzle device, and any O-ring on the threads.

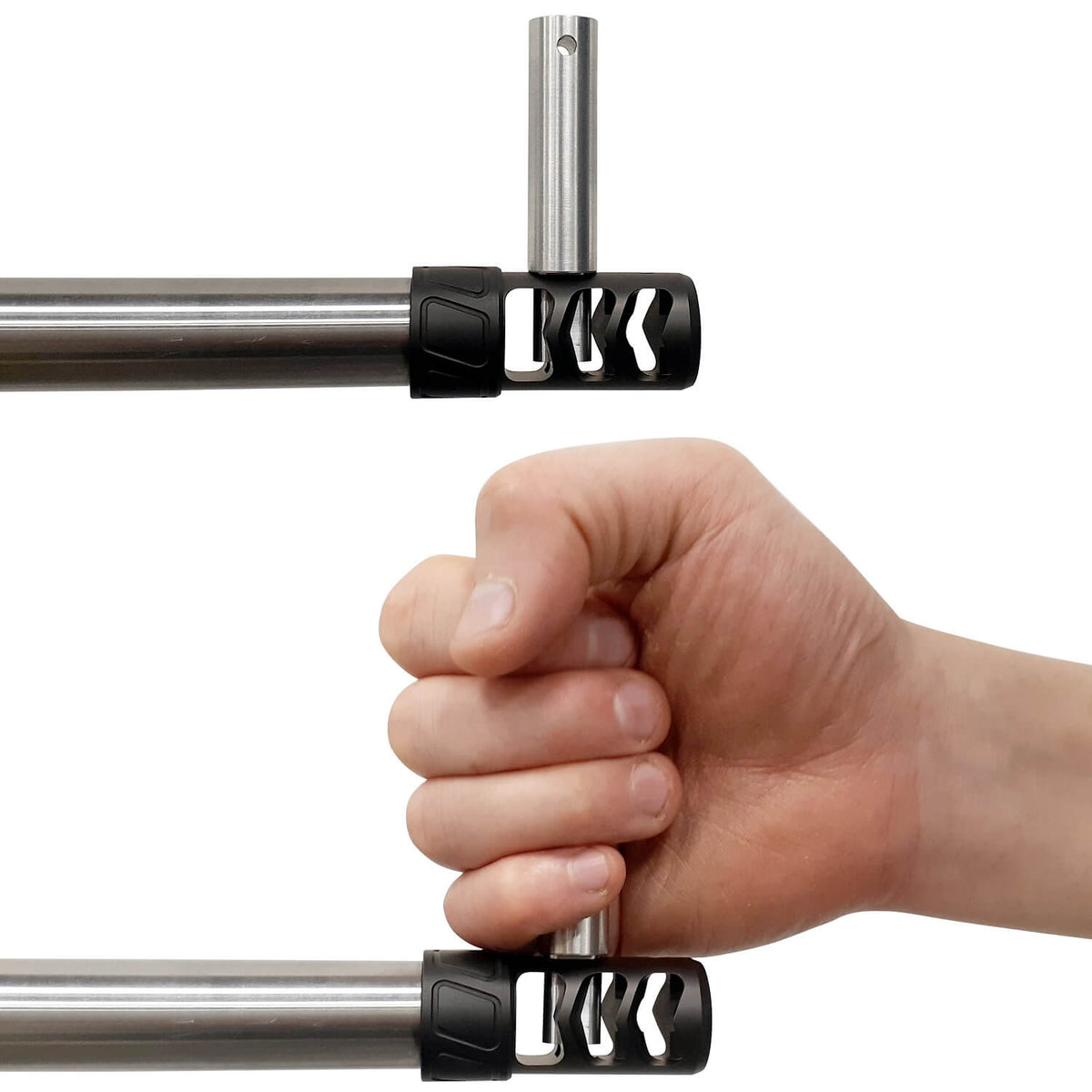

- Thread on the locking collar and brake, time the brake by hand, then lock it with the included tensioning key.
- Remove the key after tightening.
Precision machined by Spearhead Machine in Canada.
$203.28
