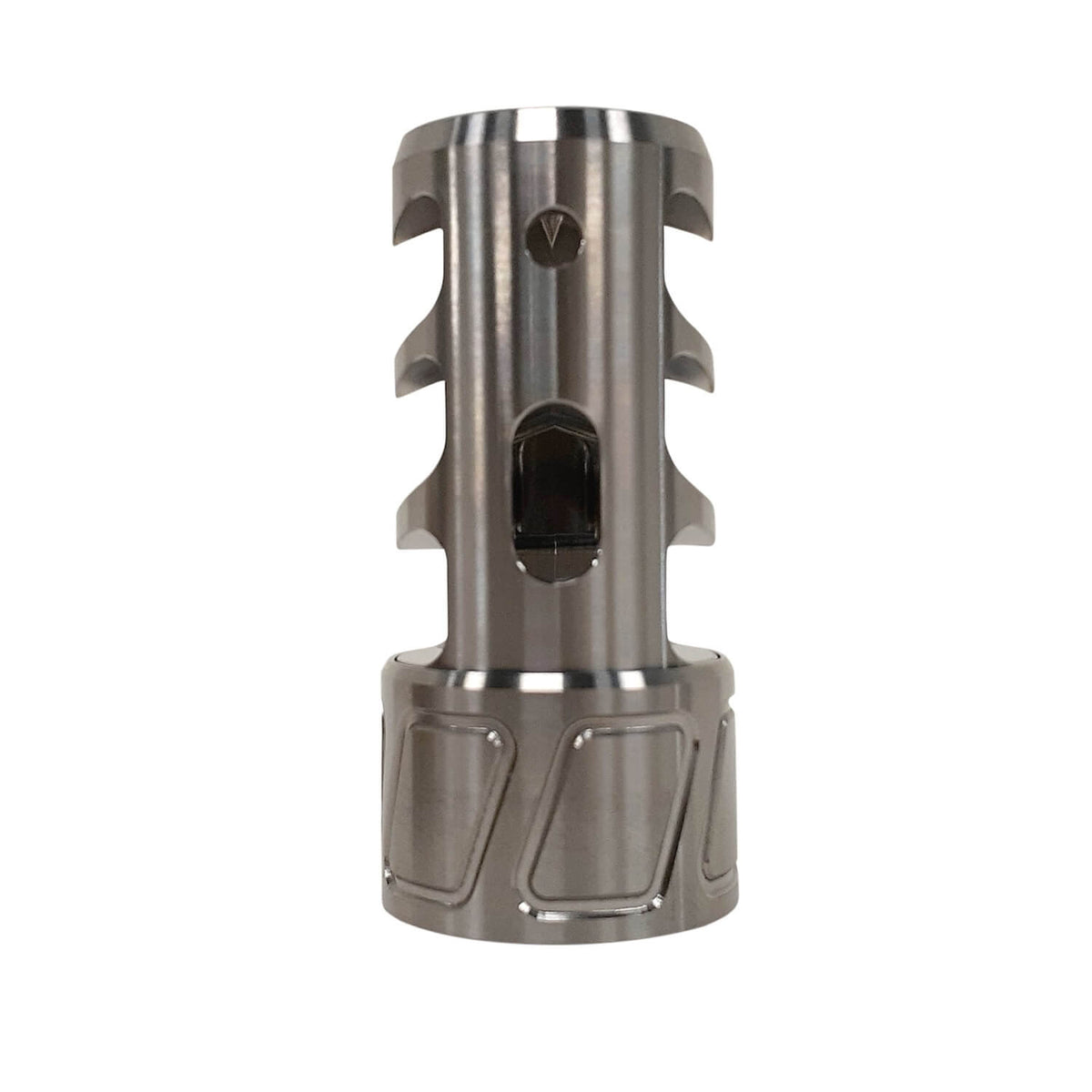

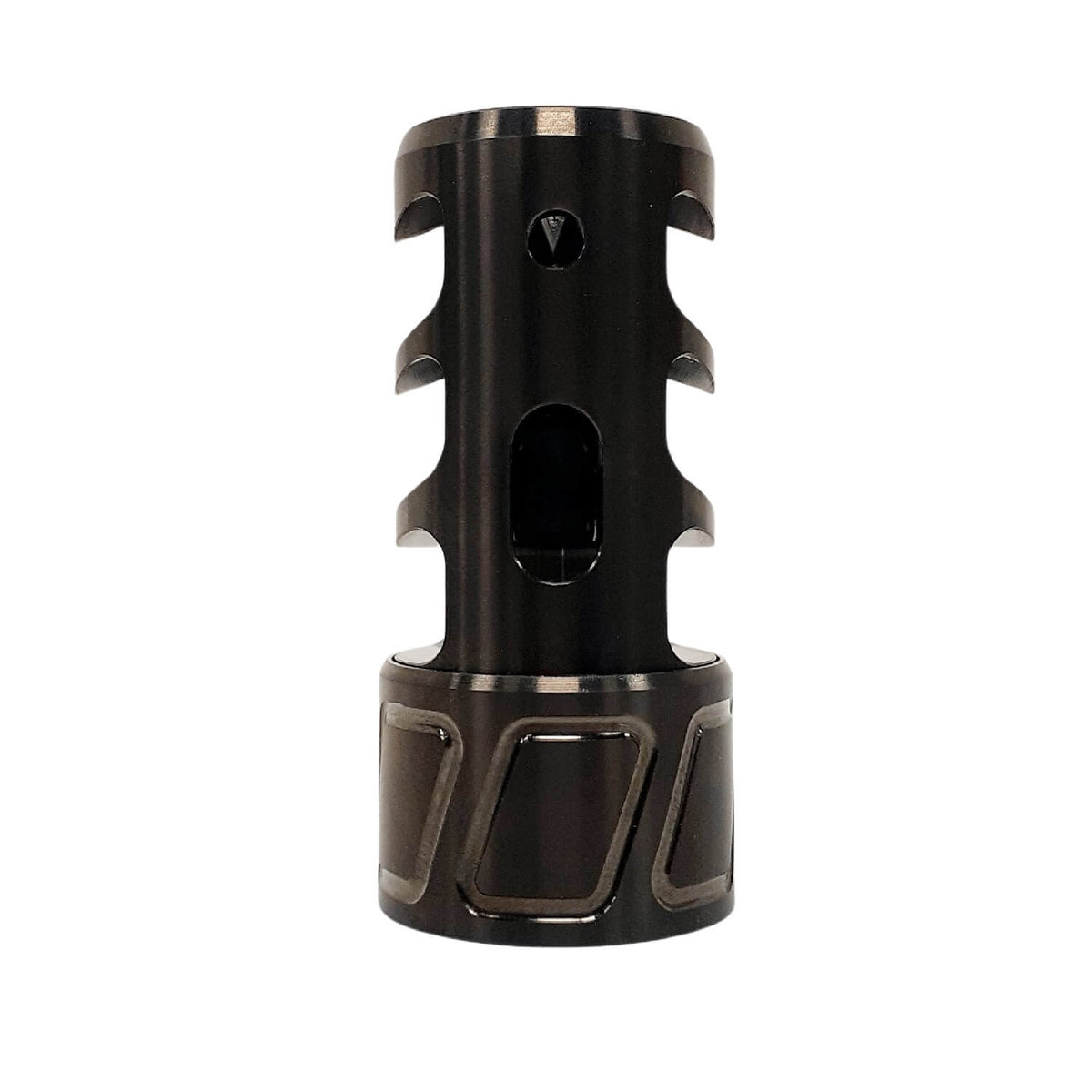

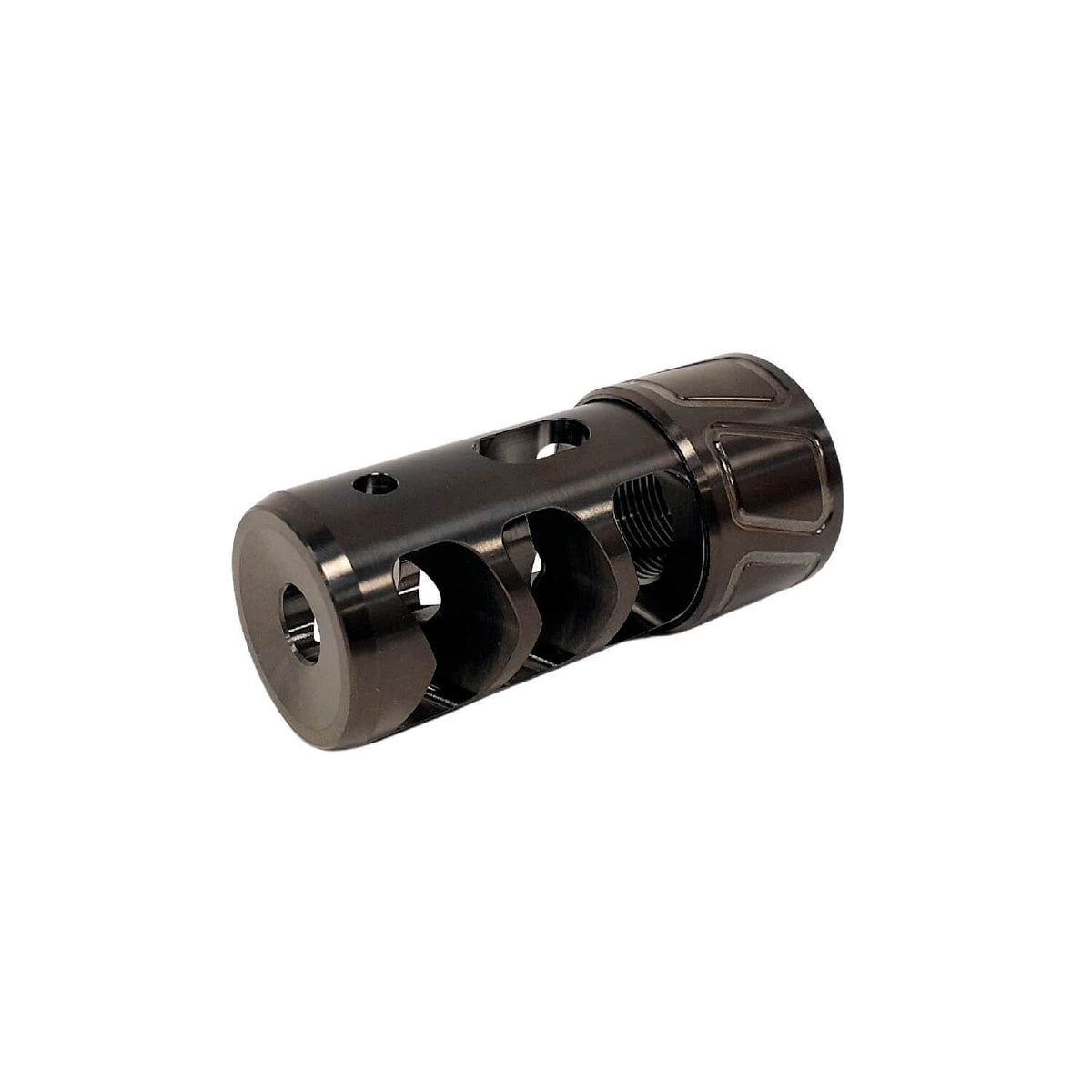

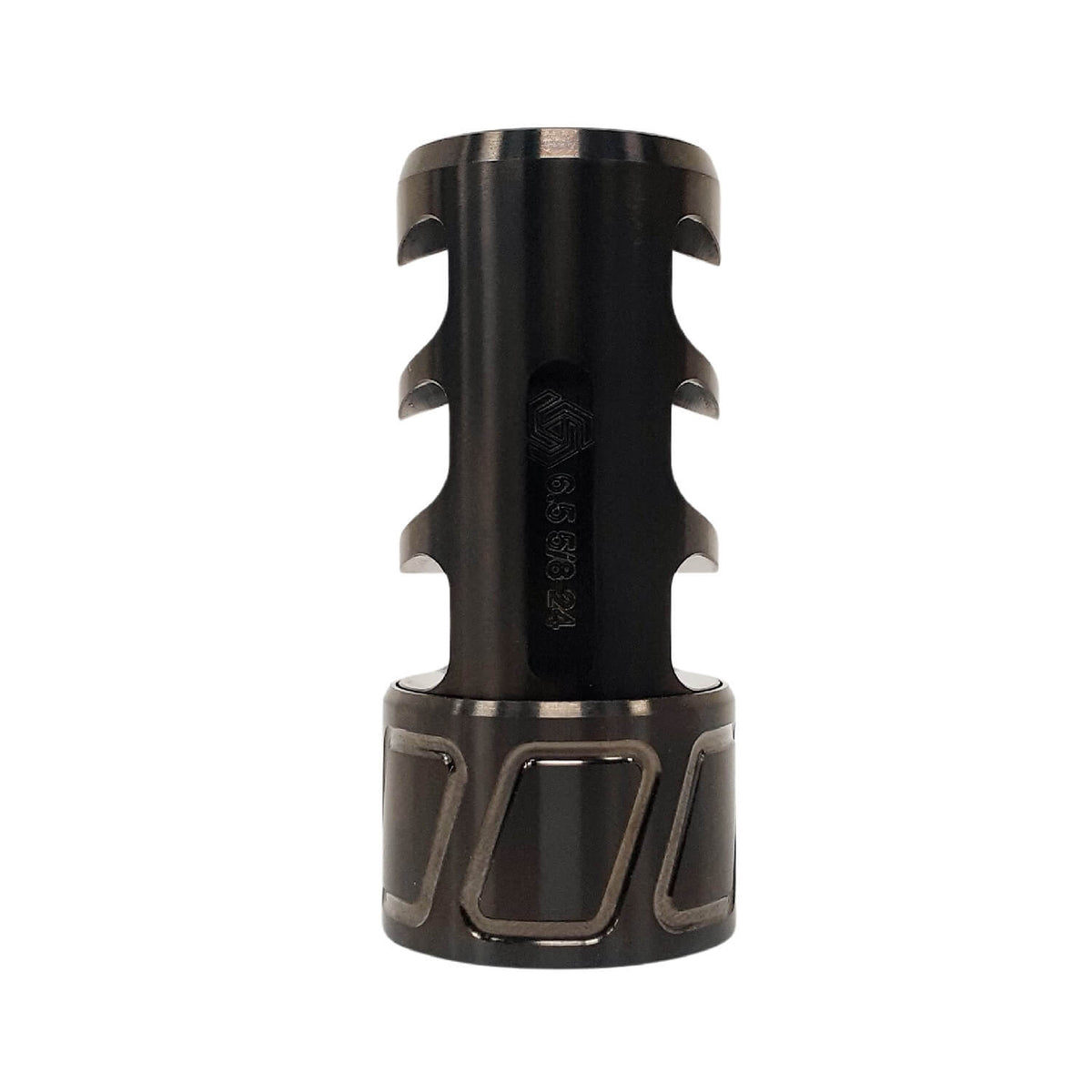

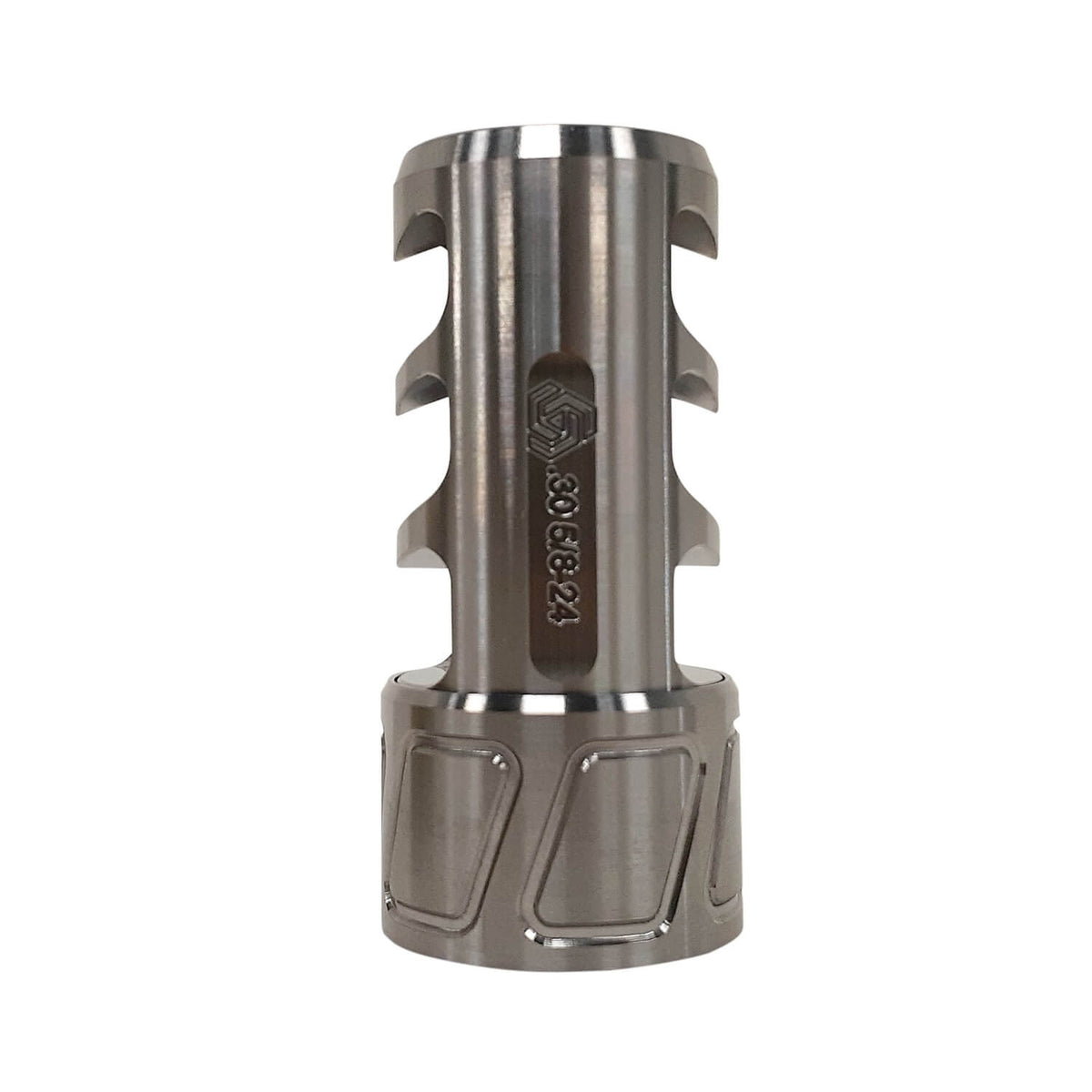

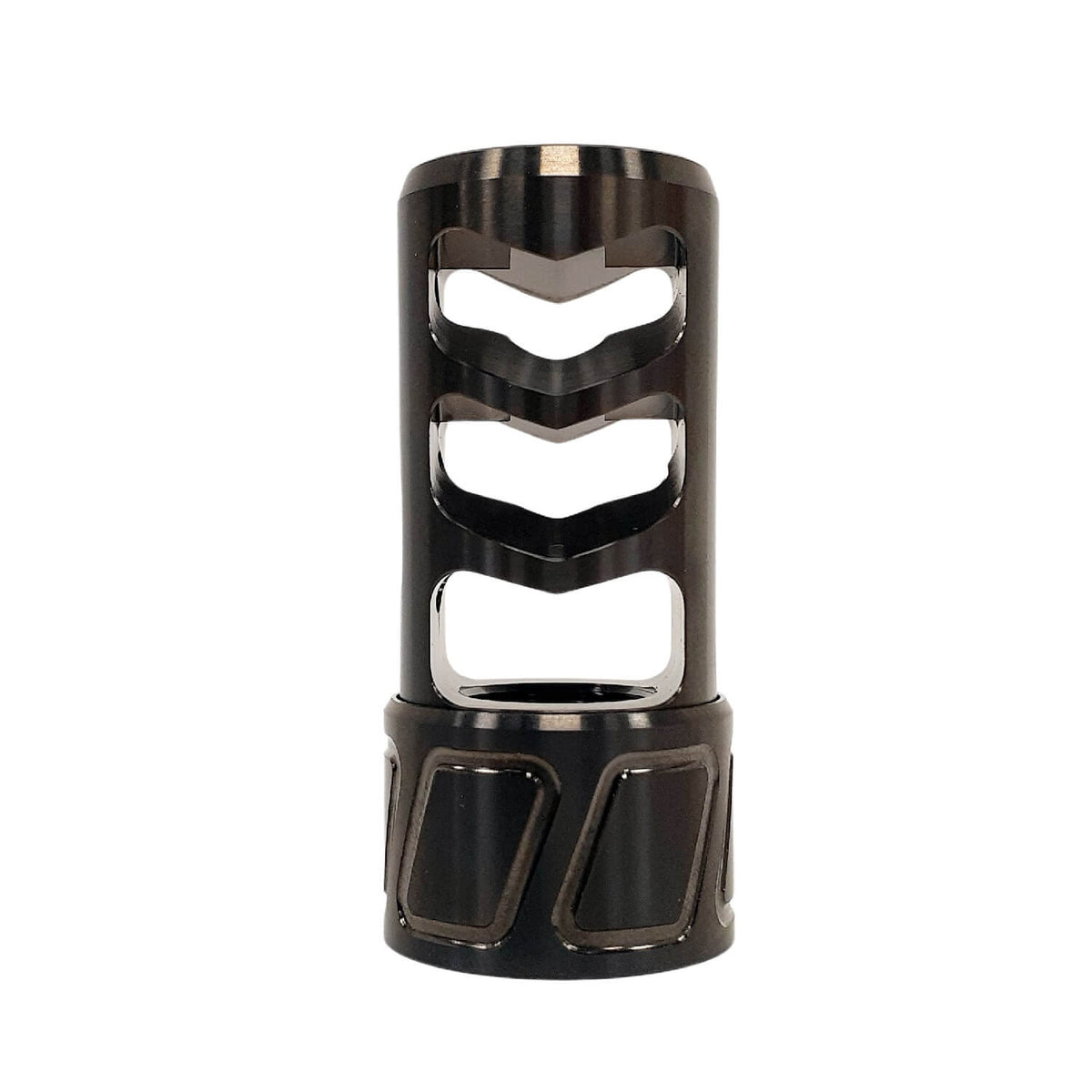

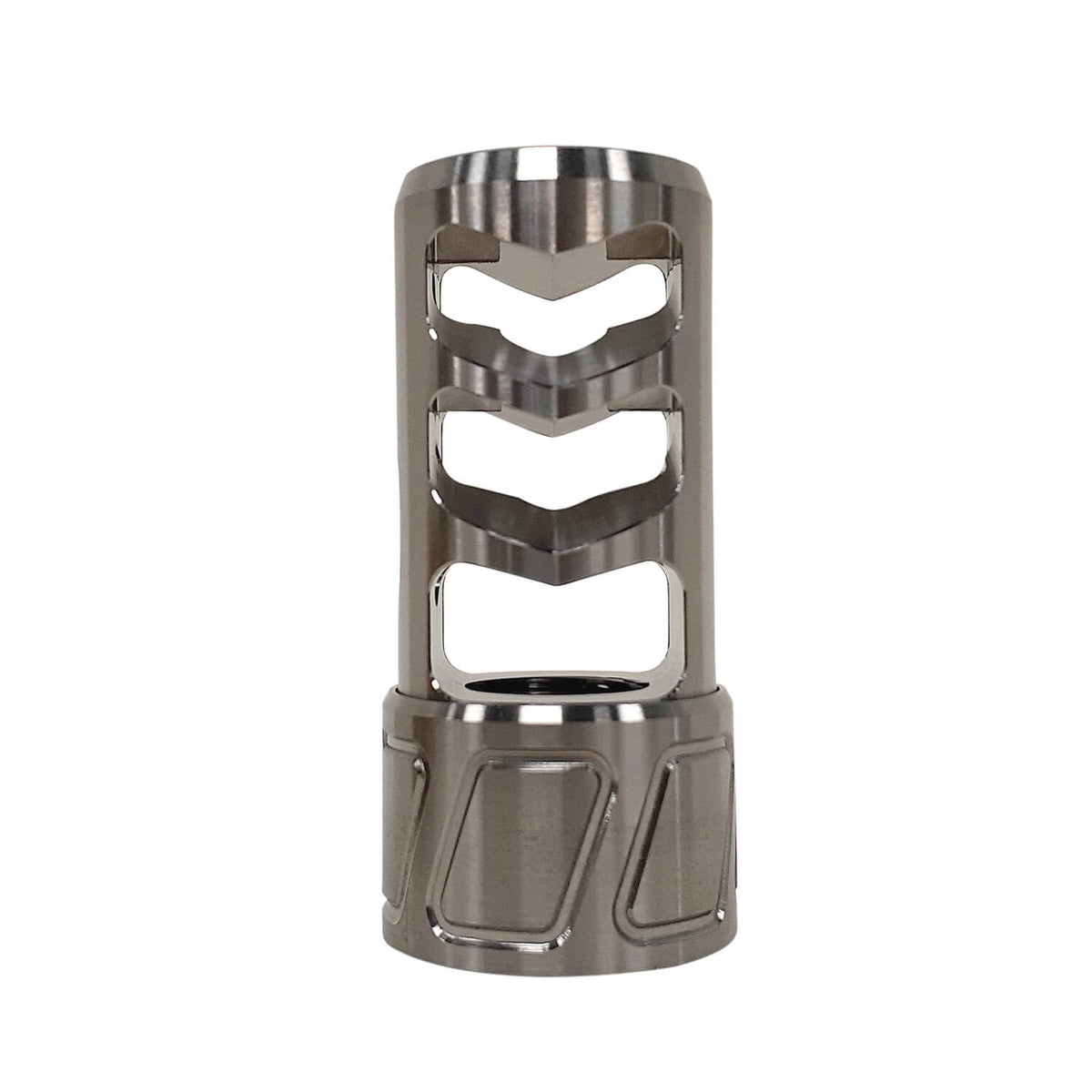

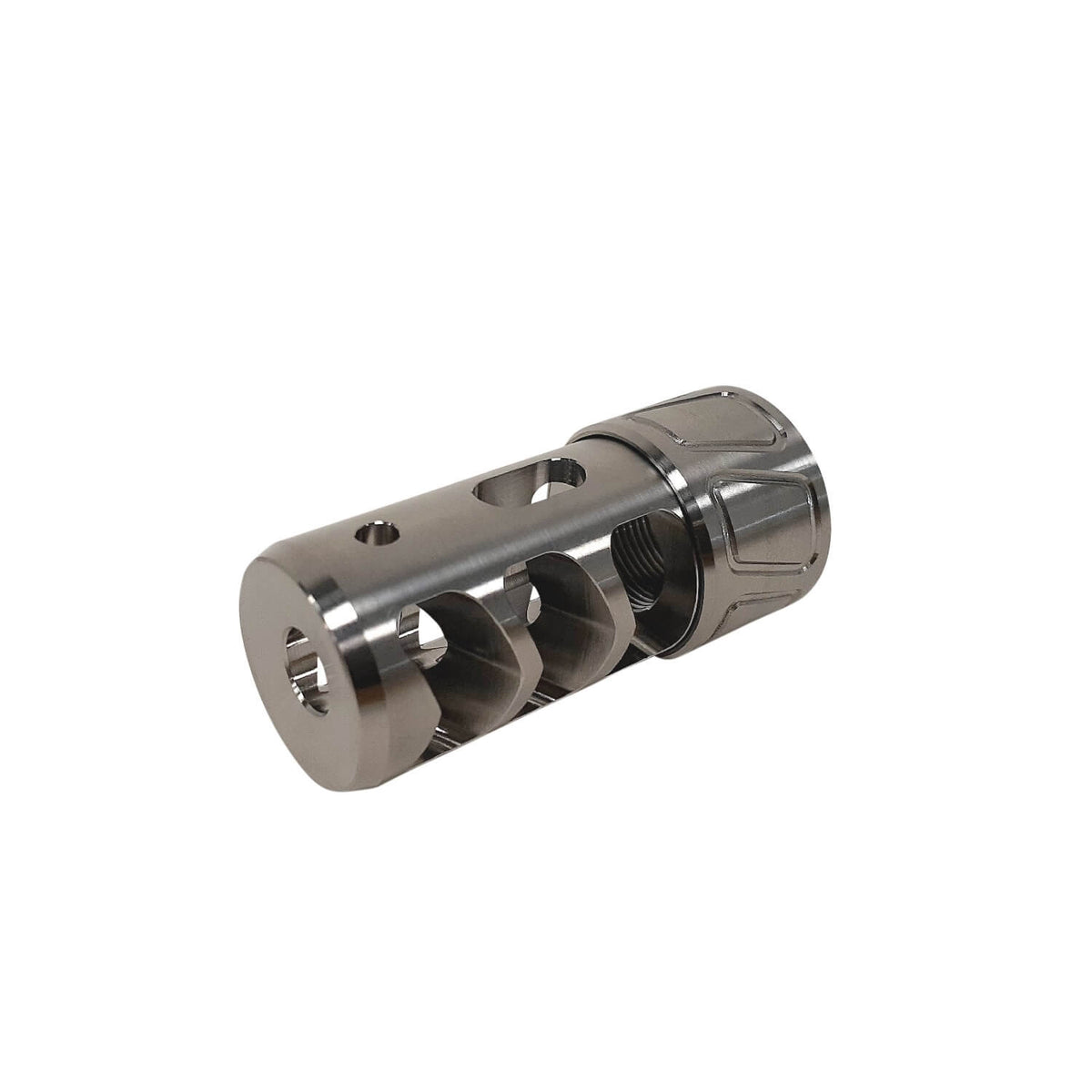

Spearhead Machine Titanium Self Timing Muzzle Brake 3 Port

$243.93
$243.93
Sale Sold out
Tax included. Shipping calculated at checkout.
Thread Pitch
Bore (Caliber)
Finish
Available To Order
Why buy from B&B

Because you work directly with a family-run business that cares about getting it right.

B&B Firearms is built on faith, family, service, and real product knowledge. When you buy here, you are not supporting a giant corporation — you are working with a veteran-owned family business that values honesty, guidance, and doing right by people.

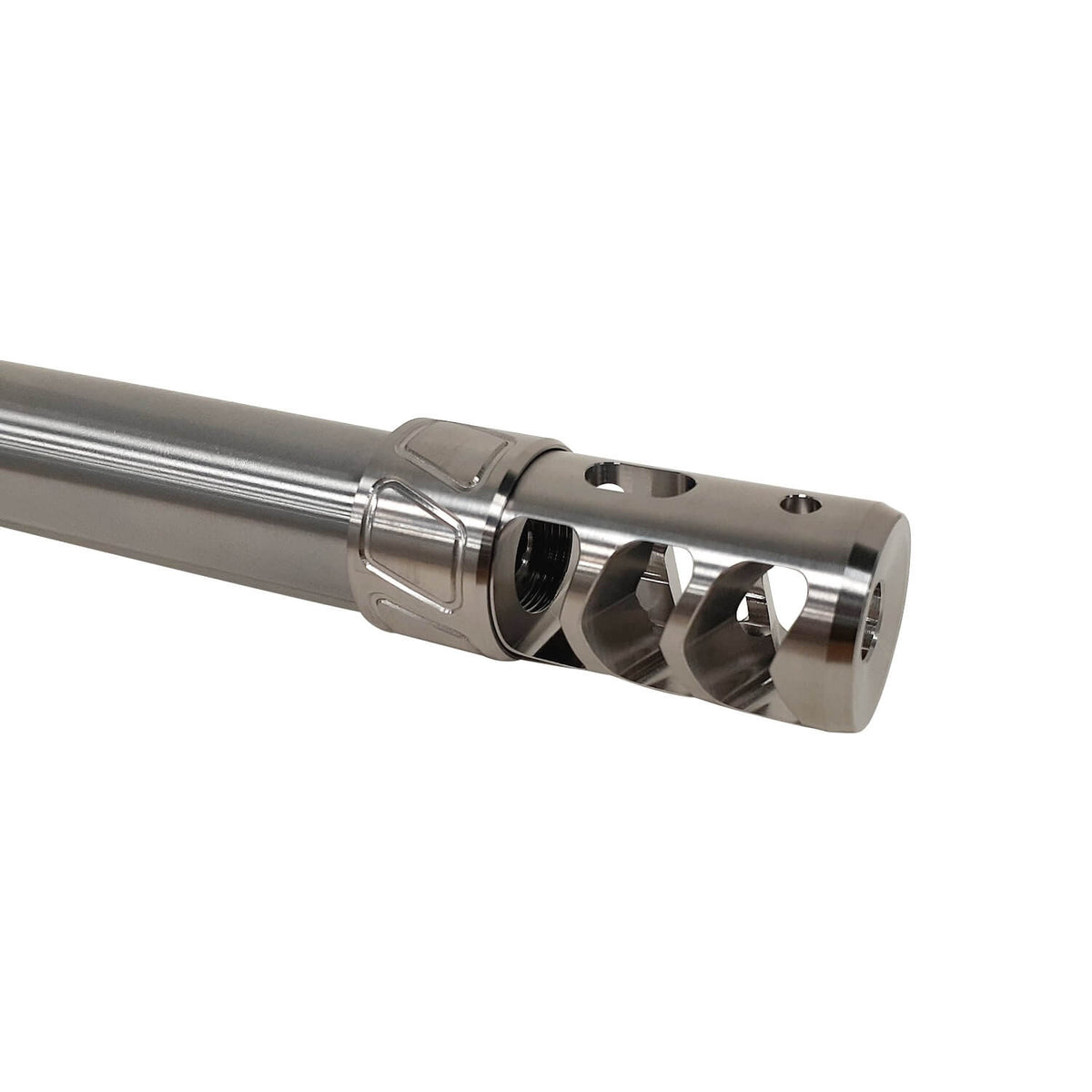

Self-timing hybrid top + side port brake with proprietary linked port (double expansion chamber). The hybrid top and side ports keep the muzzle down so you can watch your impacts, and the self-timing collar installs by hand. Built for weight-conscious hunting rifles; pairs with Proof Research Sendero contour.

Specifications

Design 3-port self-timing
Diameter 1.0" brake body, 1.1" locking collar
Length 2.367"
Back taper Varies by option (see below)
Weight 64 g / 2.26 oz
Material Grade 5 titanium (6Al-4V)
Installation Self-timing locking collar, tensioning key included; no tools needed
Leveling Leveling flat on the bottom for precise leveling
Fits Weight-conscious hunting rifles; pairs with Proof Research Sendero contour

Available options

Thread Pitch Bore (Caliber) Finish
5/8-24 6.5mm Raw Titanium
5/8-24 .30/7mm Raw Titanium
5/8-24 6.5mm DLC
5/8-24 .30/7mm DLC

Choose a bore that matches or exceeds your caliber.

Installation

  1. Make sure the firearm is completely unloaded.
  2. Confirm the brake bore matches or exceeds your caliber.
  3. Remove the factory thread protector or muzzle device, and any O-ring on the threads.
  4. Thread on the locking collar and brake, time the brake by hand, then lock it with the included tensioning key.
  5. Remove the key after tightening.

Precision machined by Spearhead Machine in Canada.
