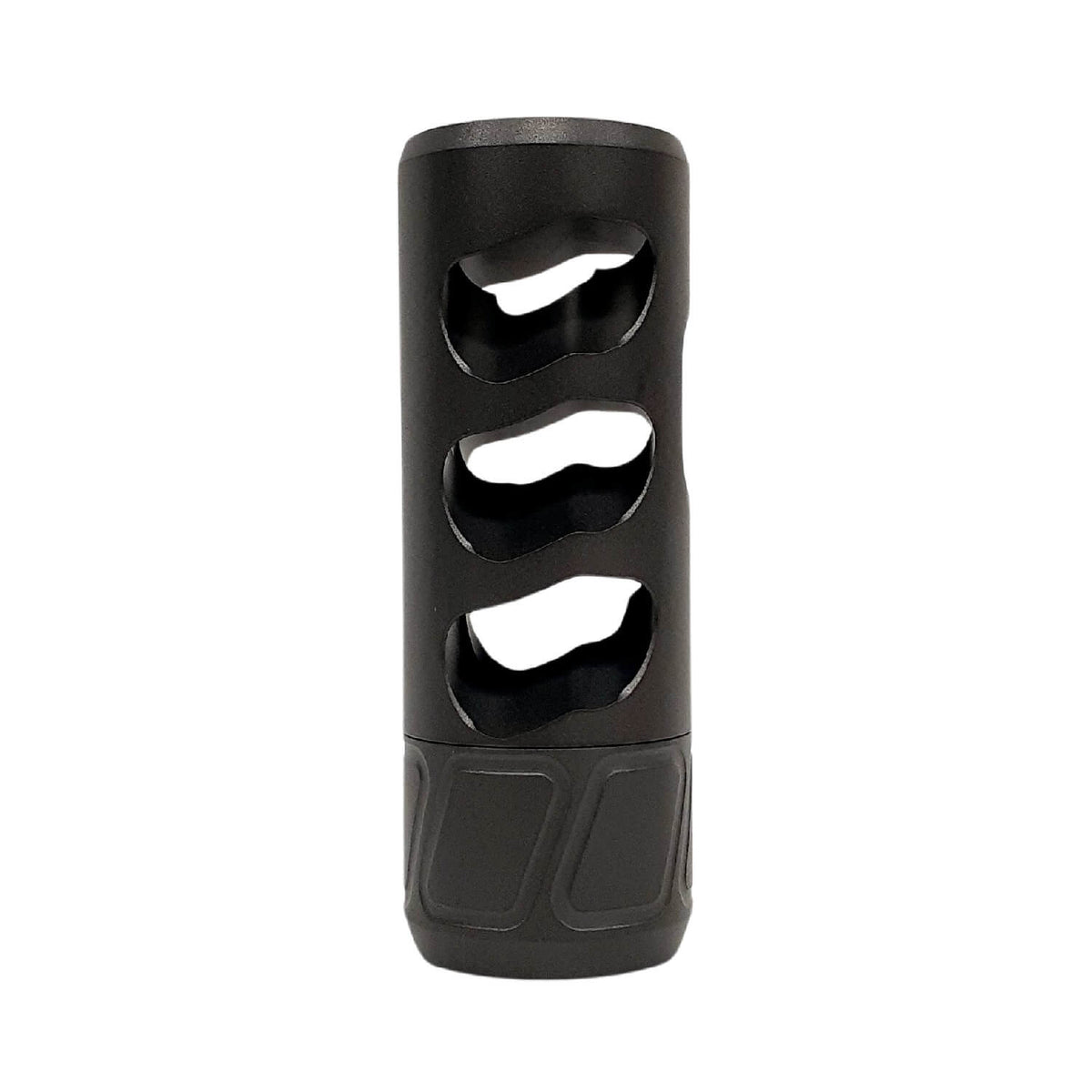

Spearhead Machine Tracker Self Timing Muzzle Brake 3 Port

$121.96
$121.96
Sale Sold out
Tax included. Shipping calculated at checkout.
Thread Pitch
Bore (Caliber)
Finish
Available To Order
Why buy from B&B

Because you work directly with a family-run business that cares about getting it right.

B&B Firearms is built on faith, family, service, and real product knowledge. When you buy here, you are not supporting a giant corporation — you are working with a veteran-owned family business that values honesty, guidance, and doing right by people.

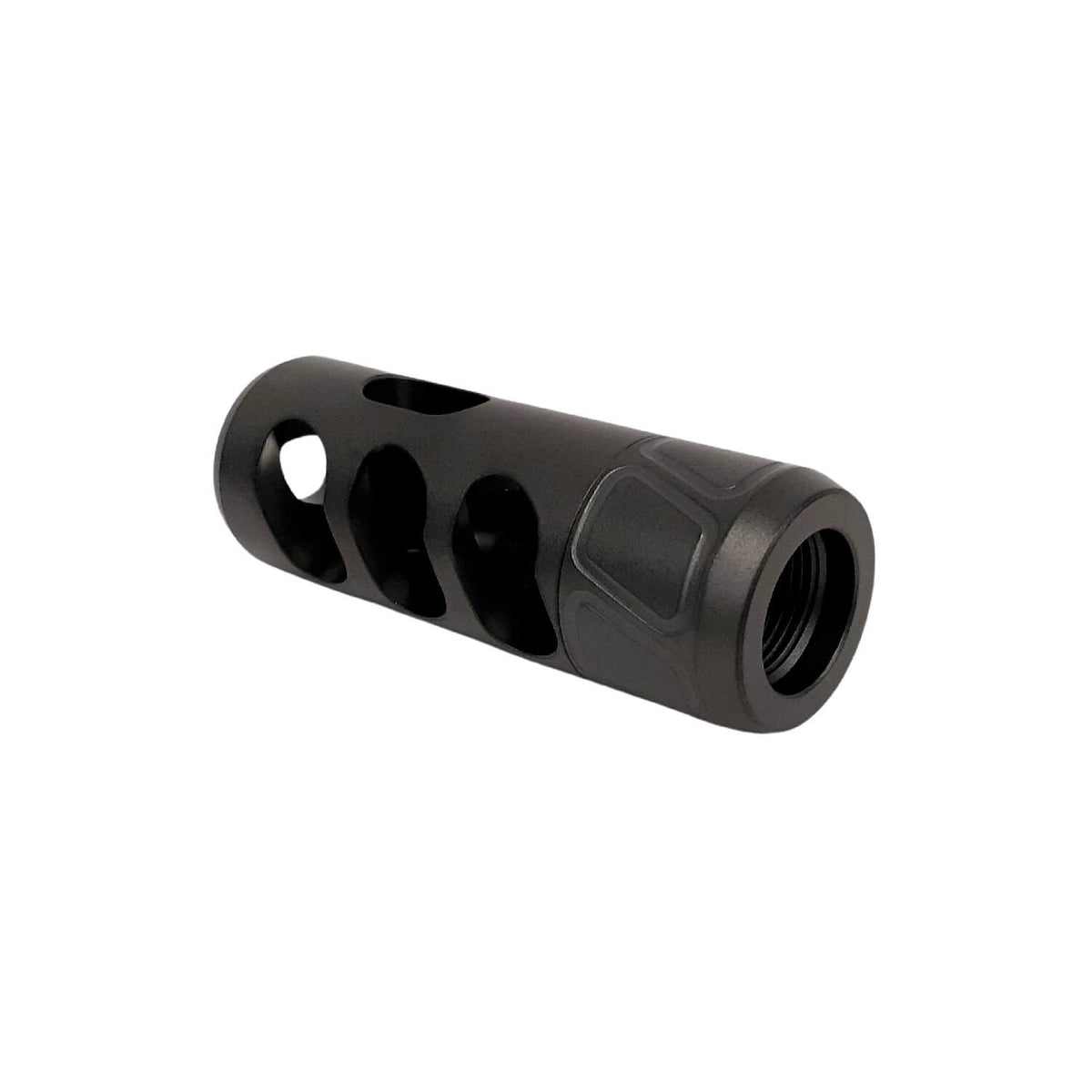

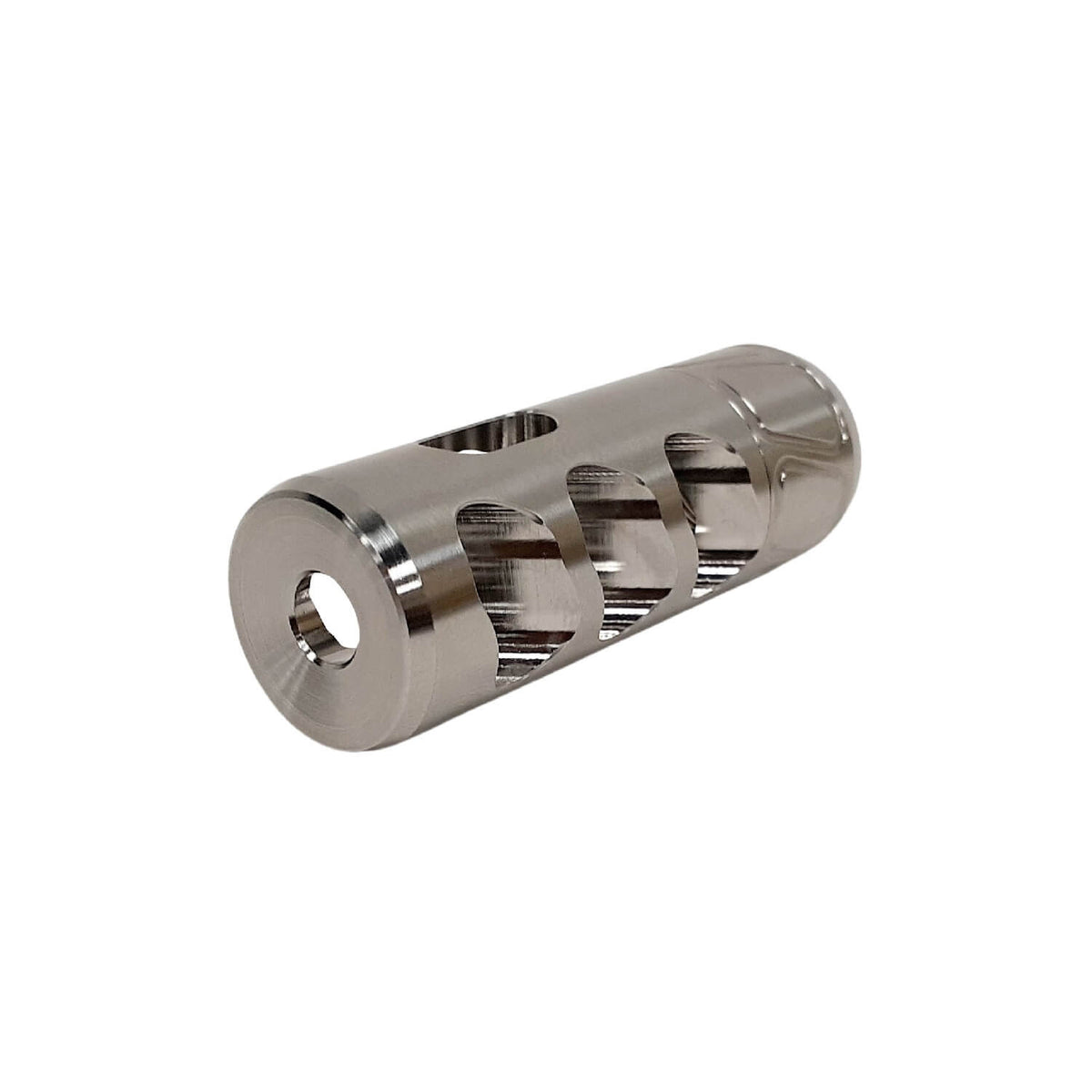

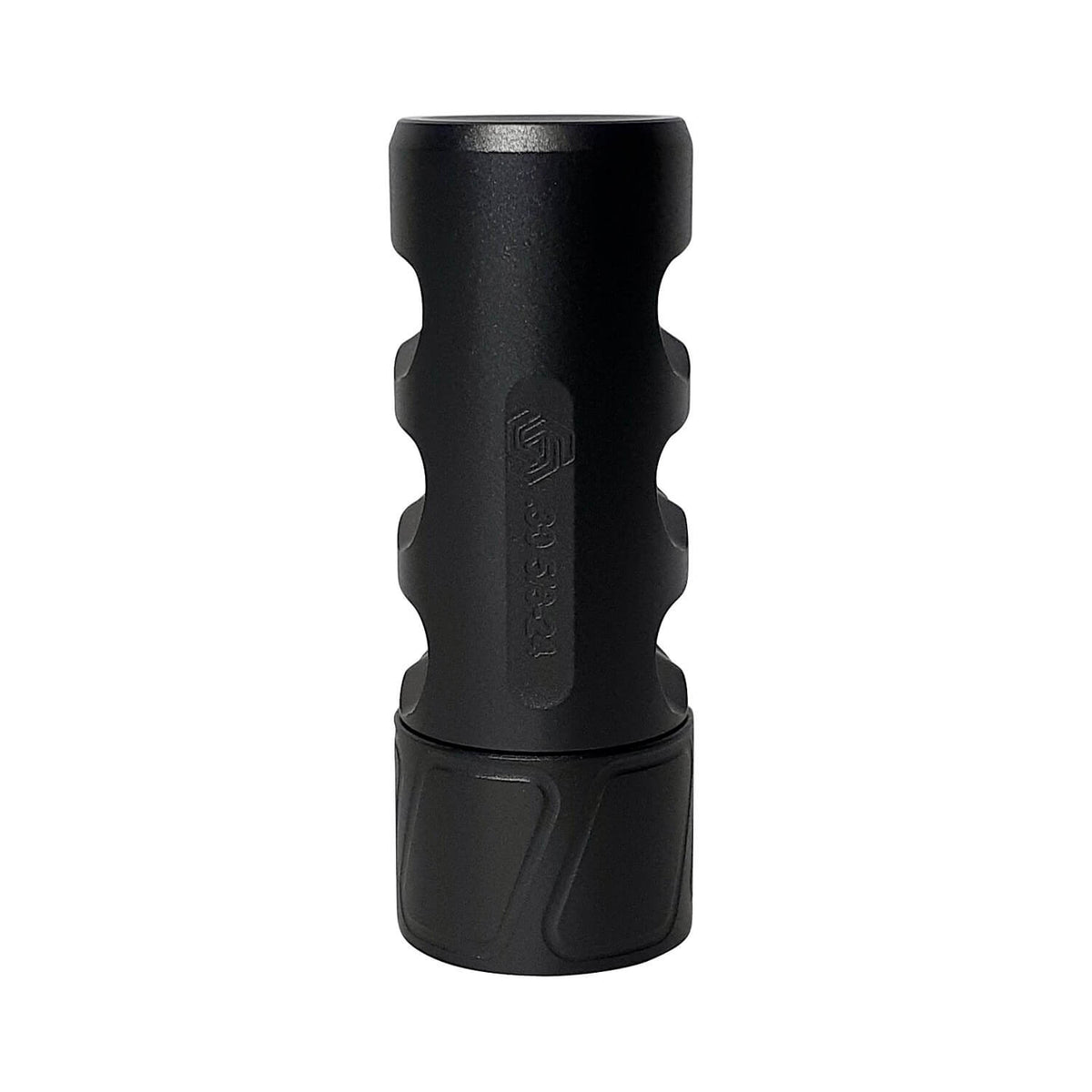

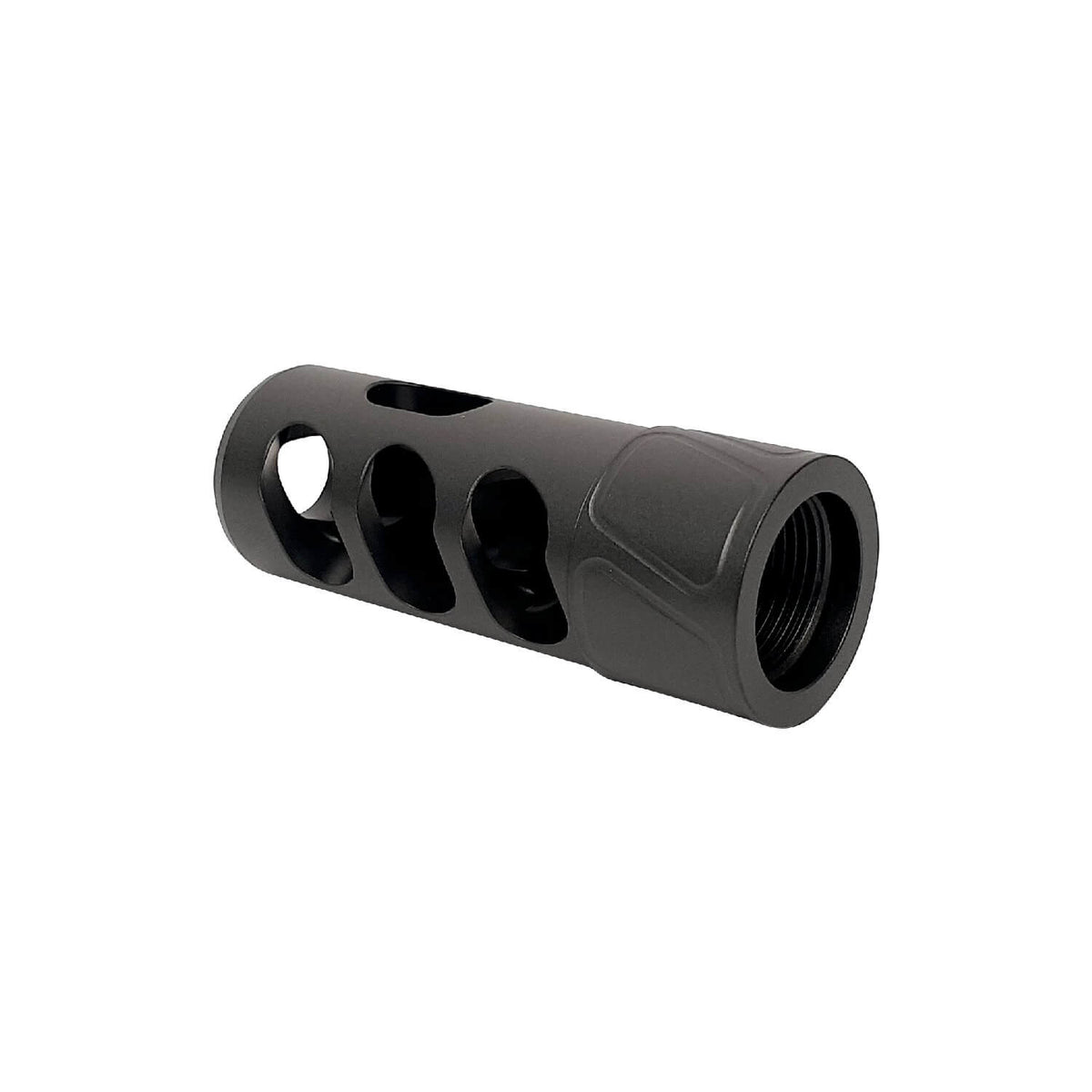

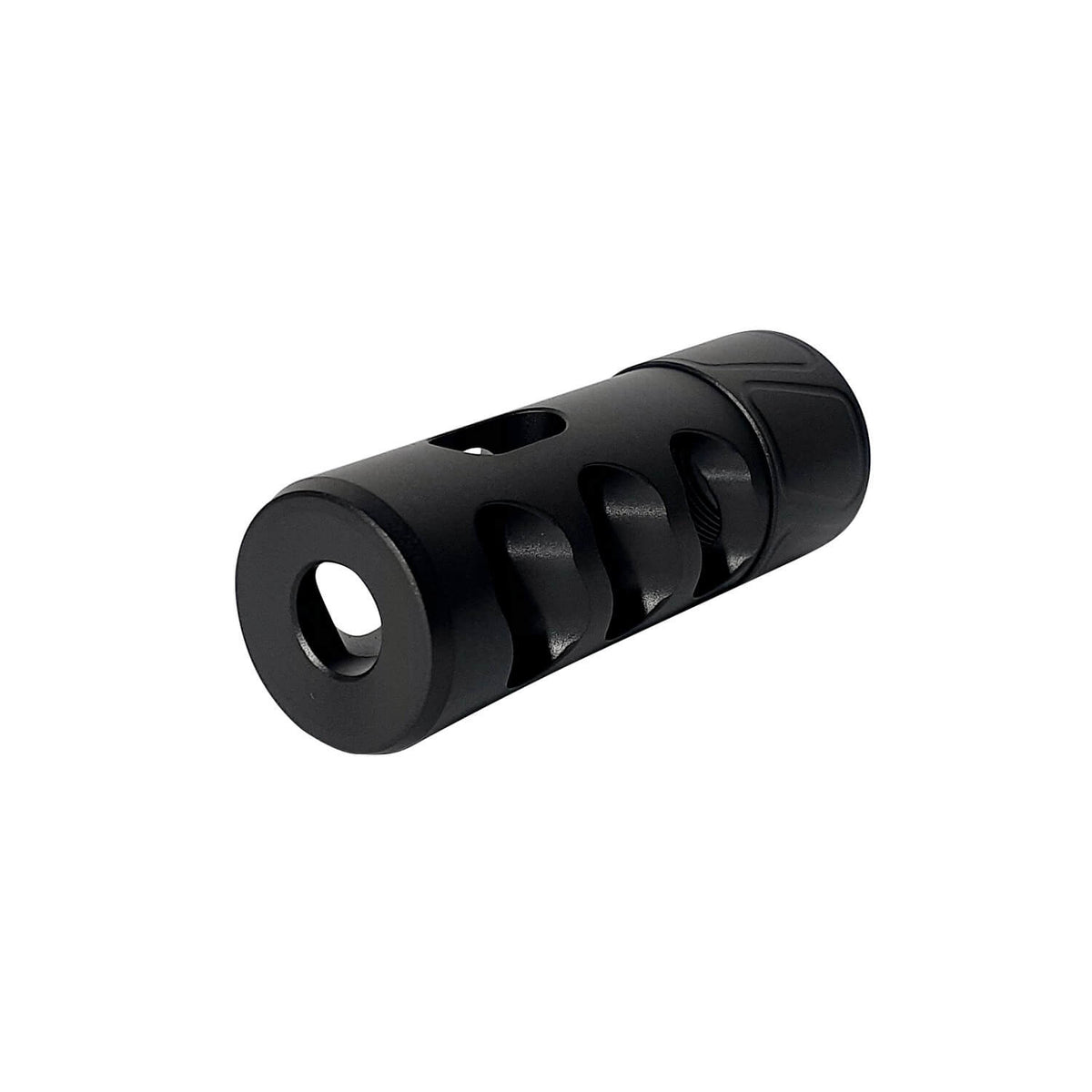

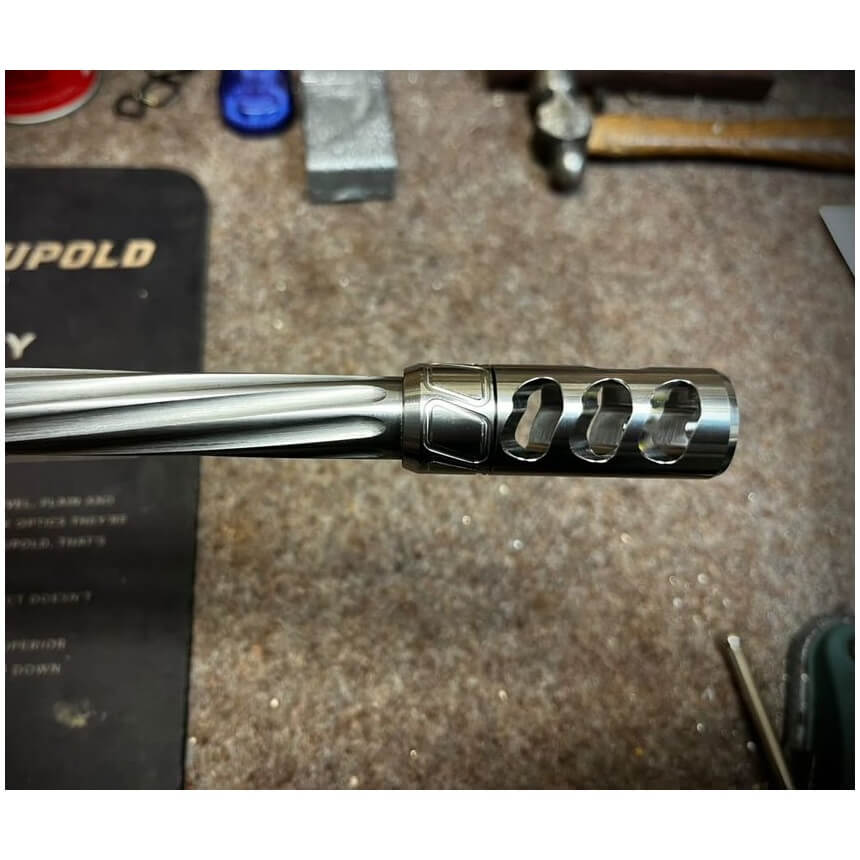

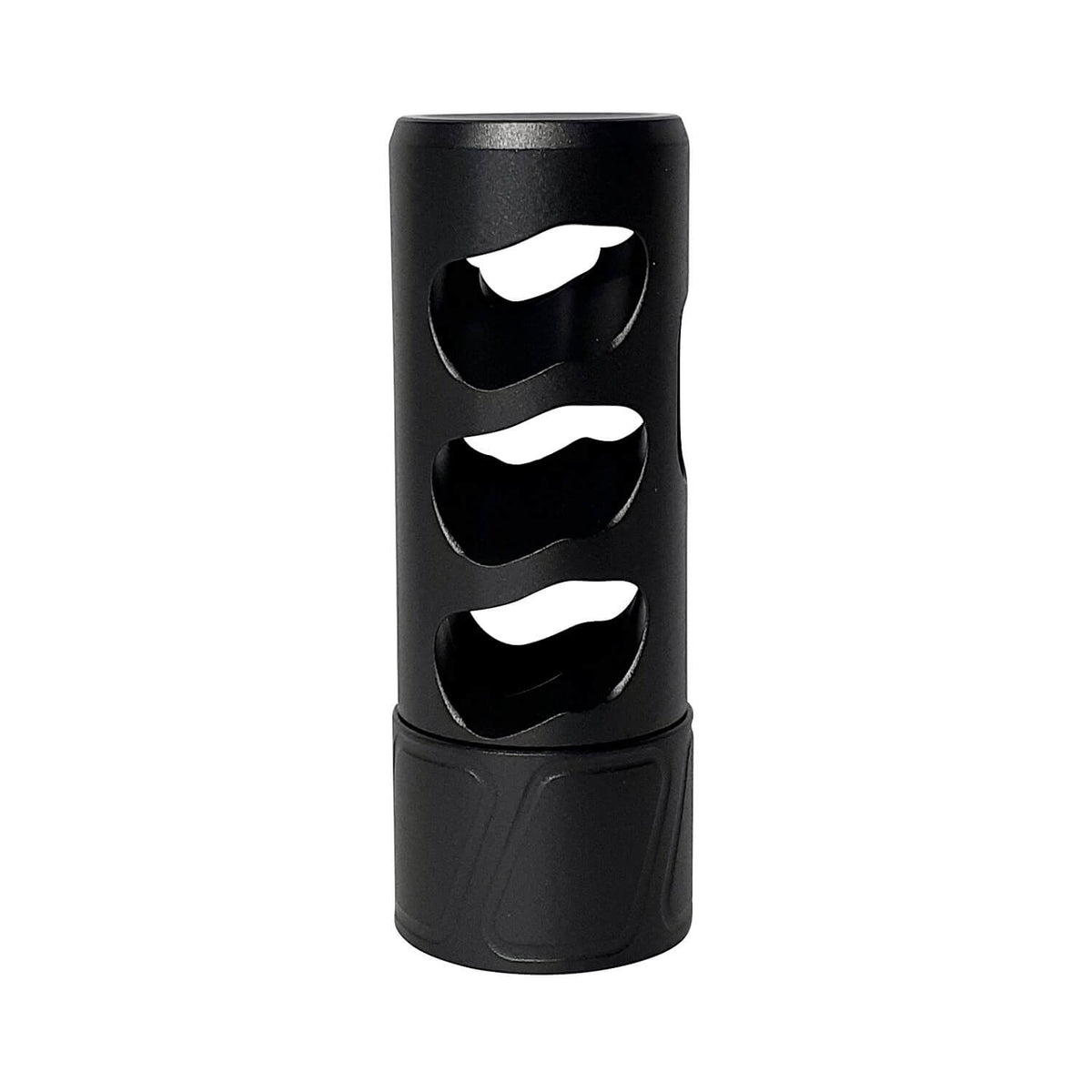

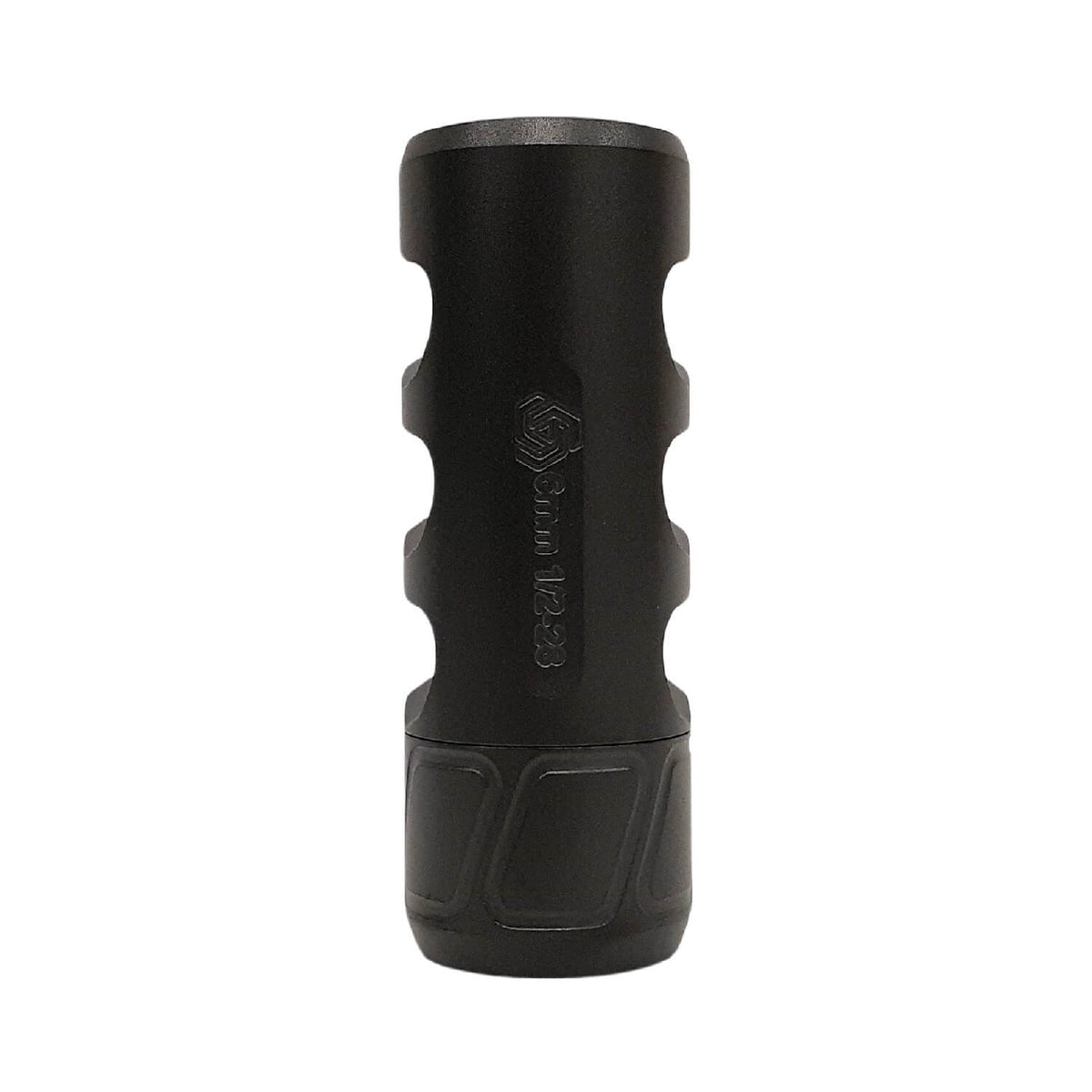

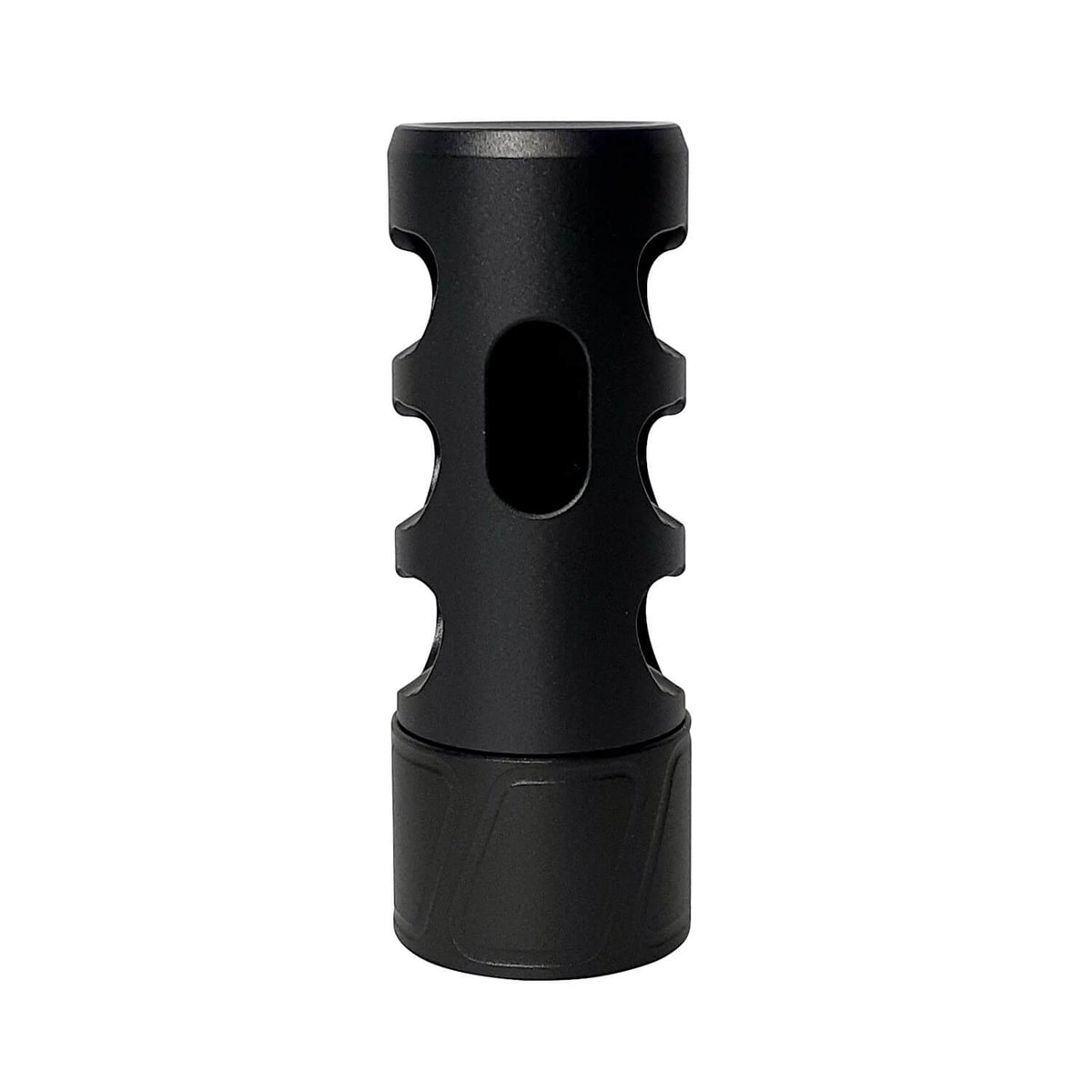

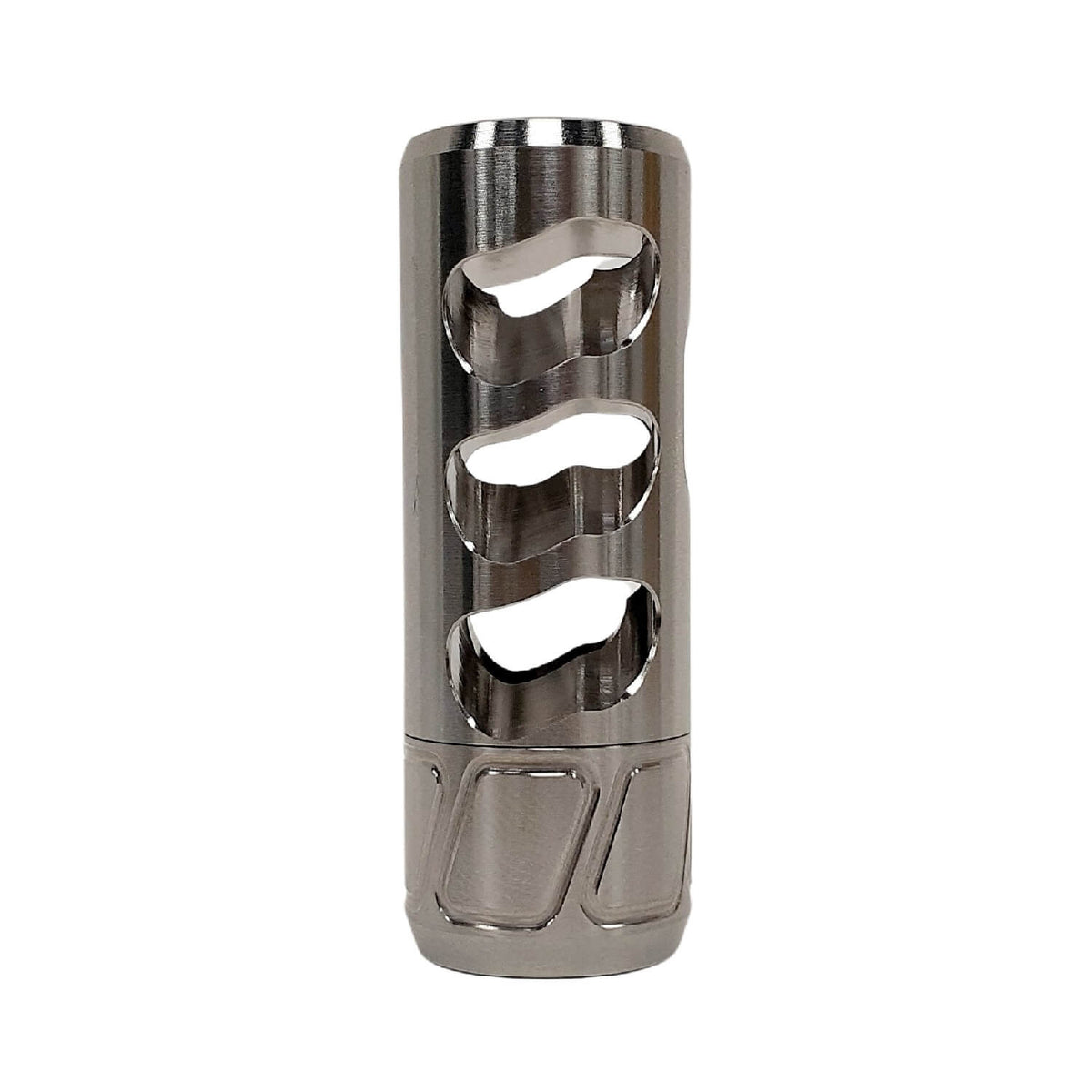

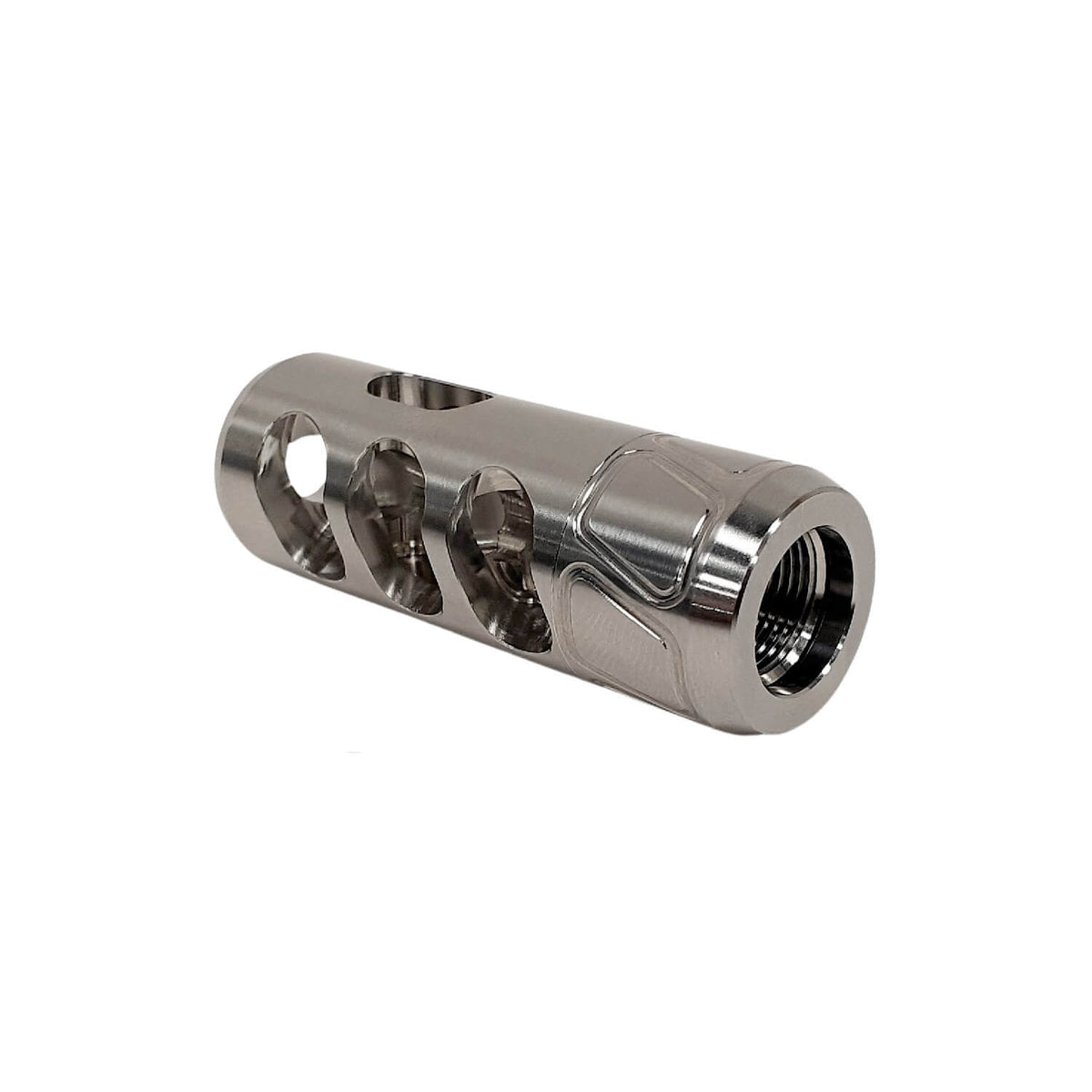

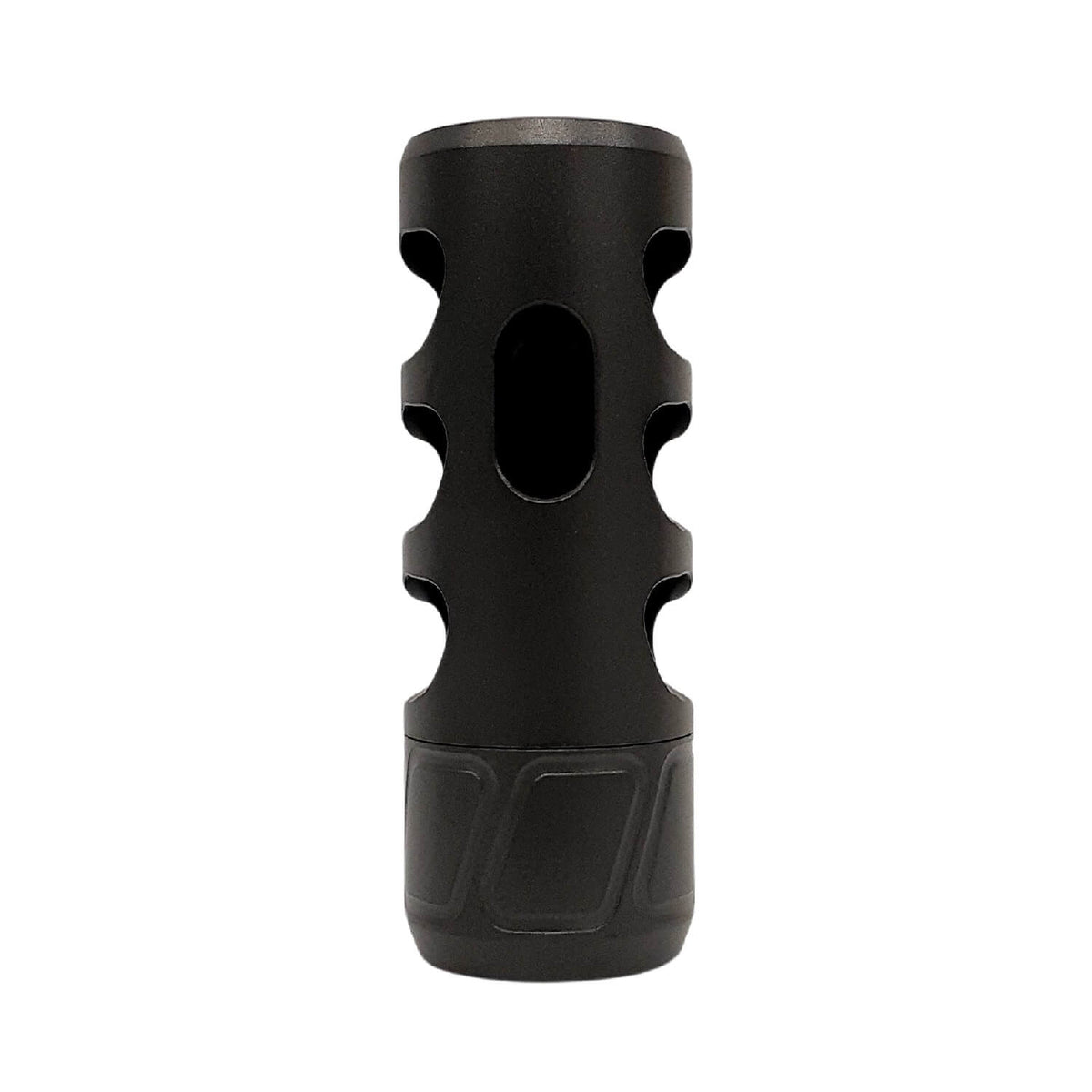

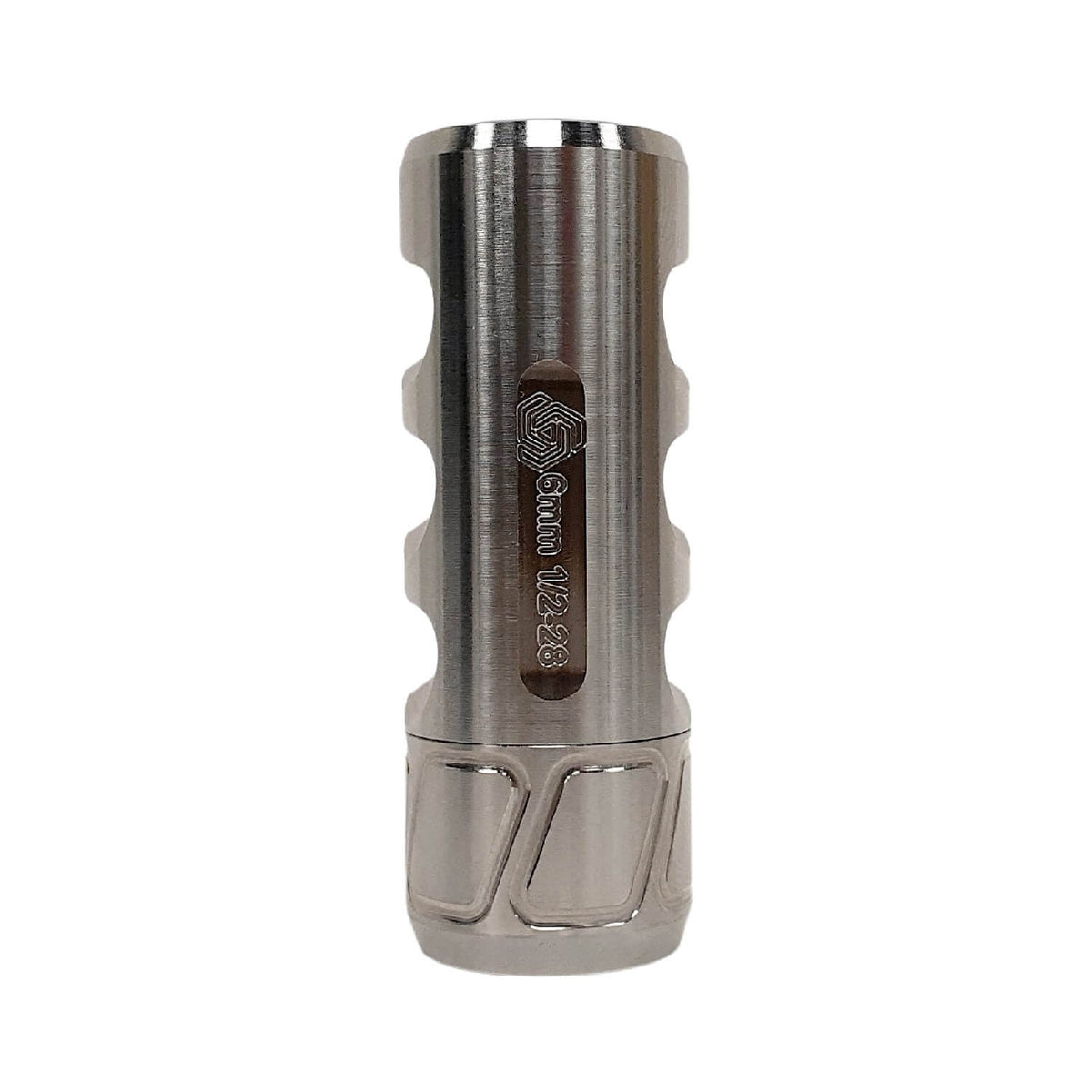

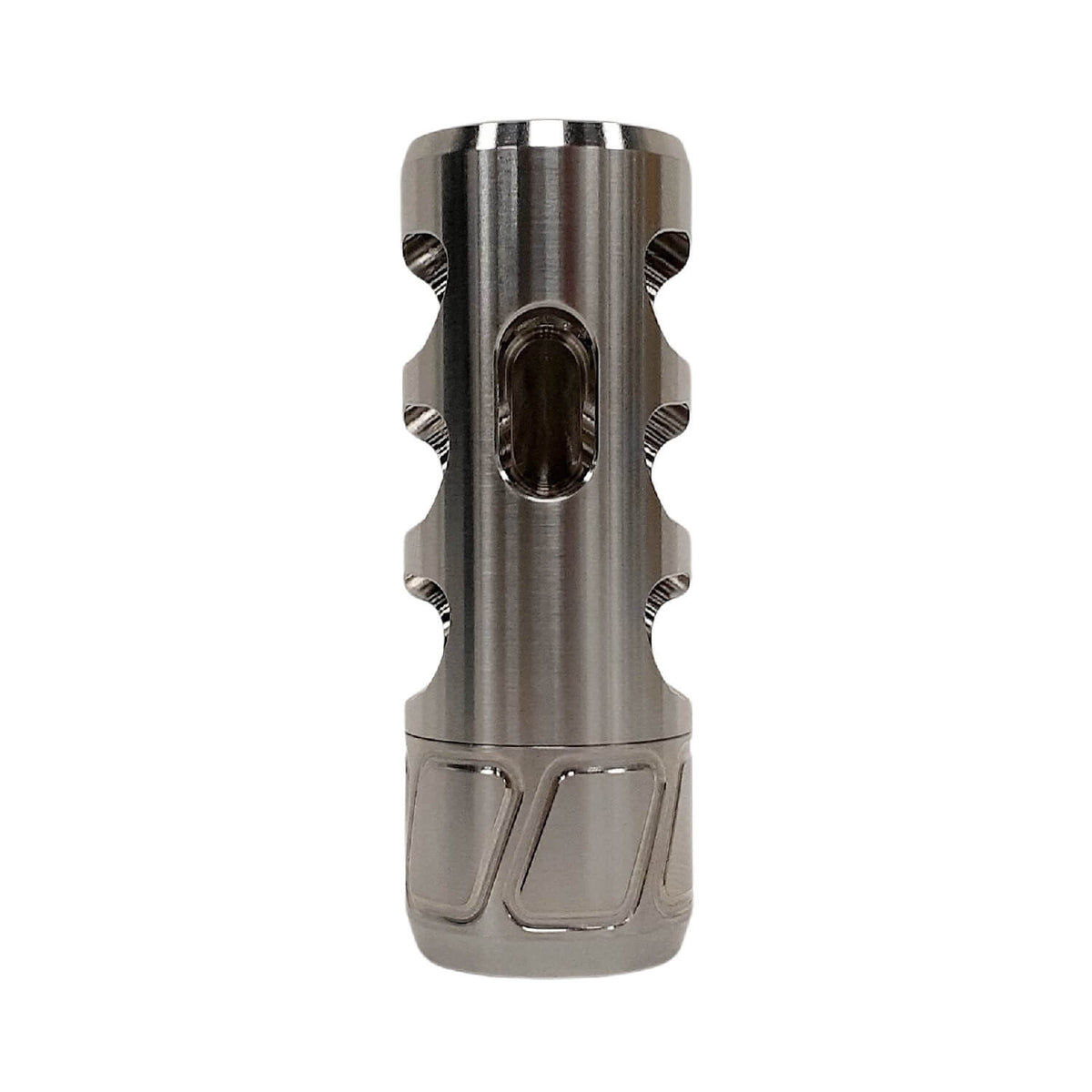

Self-timing 3-port brake; raised slanted ports above bore centerline cut ground blast and add downward compensation; linked port double expansion chamber. The hybrid top and side ports keep the muzzle down so you can watch your impacts, and the self-timing collar installs by hand. Built for lightweight hunting rifles, AR-15s, rimfire.

Fitment & notes

  • Two body profiles depending on thread pitch
  • M15x1 fits CZ 600 Alpha / Ergo / Trail metric-thread models only (CZ 600s can be M15x1 or 5/8-24, check yours)
  • .30/7mm bore accepts up to .30 cal and 7.62×39

Specifications

Design 3-port self-timing
Diameter .840" brake body
Length 2.340"
Added length 1.715" forward of the muzzle
Back taper Varies by option (see below)
Weight Varies by option (see below)
Material 17-4 PH stainless steel
Installation Self-timing locking collar, tensioning key included; no tools needed
Leveling Leveling flat on the bottom for precise leveling

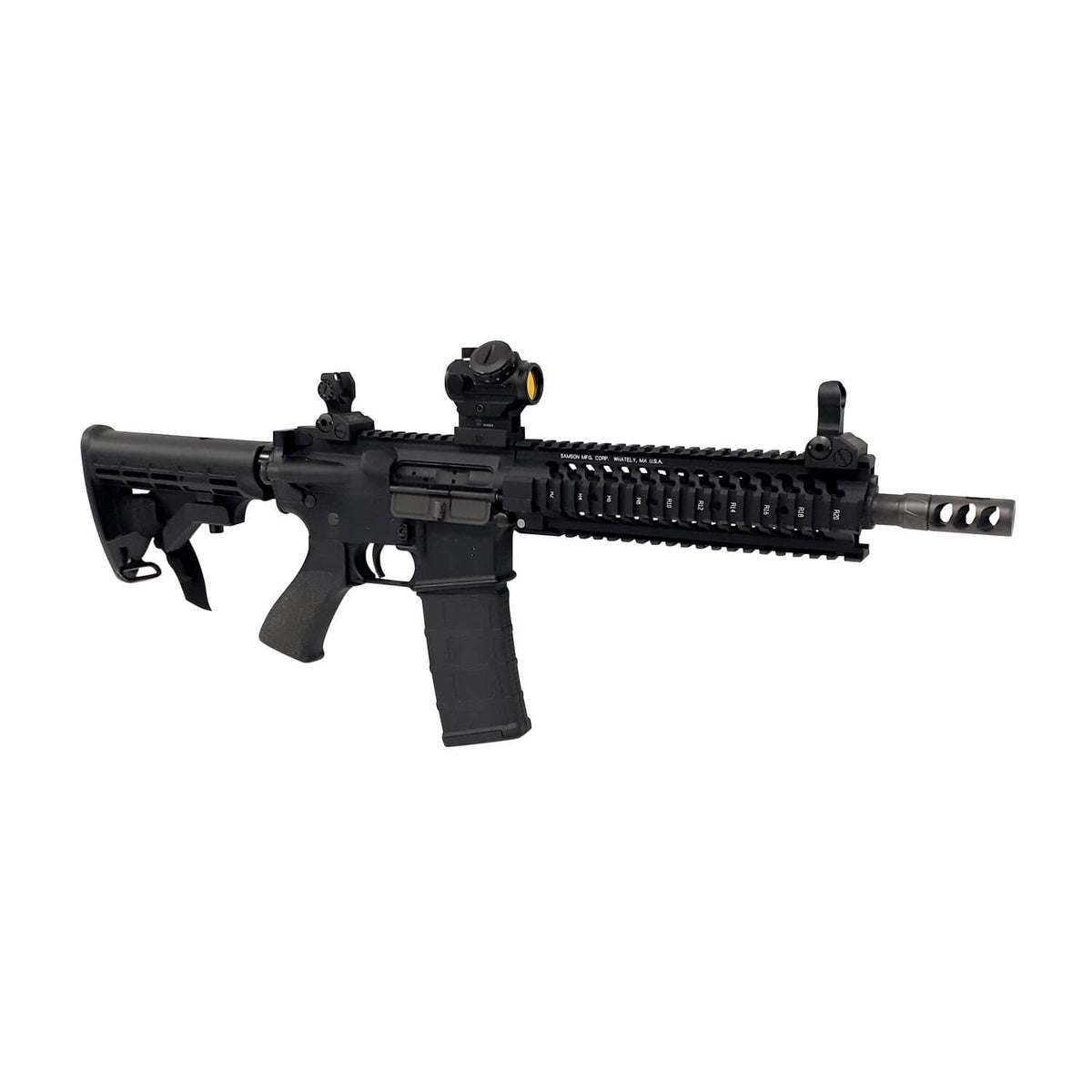

Fits Lightweight hunting rifles, AR-15s, rimfire

Available options

Thread Pitch Bore (Caliber) Finish Weight Back taper / collar
5/8-24 Non tapered locking collar .30/7mm Black Nitride 72 g / 2.54 oz .875" straight (no taper)
5/8-24 Non tapered locking collar 6.5mm Black Nitride 72 g / 2.54 oz .875" straight (no taper)
5/8-24 Non tapered locking collar .22LR/.223/6mm Black Nitride 72 g / 2.54 oz .875" straight (no taper)
M15x1 Tapered locking collar .30/7mm Black Nitride 70 g / 2.47 oz Back tapered to .750"
1/2-28 Tapered locking collar .22LR/.223/6mm Stainless 79 g / 2.79 oz Back tapered to .750"
1/2-28 Tapered locking collar 6.5mm Stainless 79 g / 2.79 oz Back tapered to .750"
1/2-28 Tapered locking collar .30/7mm Stainless 79 g / 2.79 oz Back tapered to .750"
1/2-28 Tapered locking collar .22LR/.223/6mm Black Nitride 79 g / 2.79 oz Back tapered to .750"
1/2-28 Tapered locking collar 6.5mm Black Nitride 79 g / 2.79 oz Back tapered to .750"
1/2-28 Tapered locking collar .30/7mm Black Nitride 79 g / 2.79 oz Back tapered to .750"

Choose a bore that matches or exceeds your caliber.

Installation

  1. Make sure the firearm is completely unloaded.
  2. Confirm the brake bore matches or exceeds your caliber.
  3. Remove the factory thread protector or muzzle device, and any O-ring on the threads.

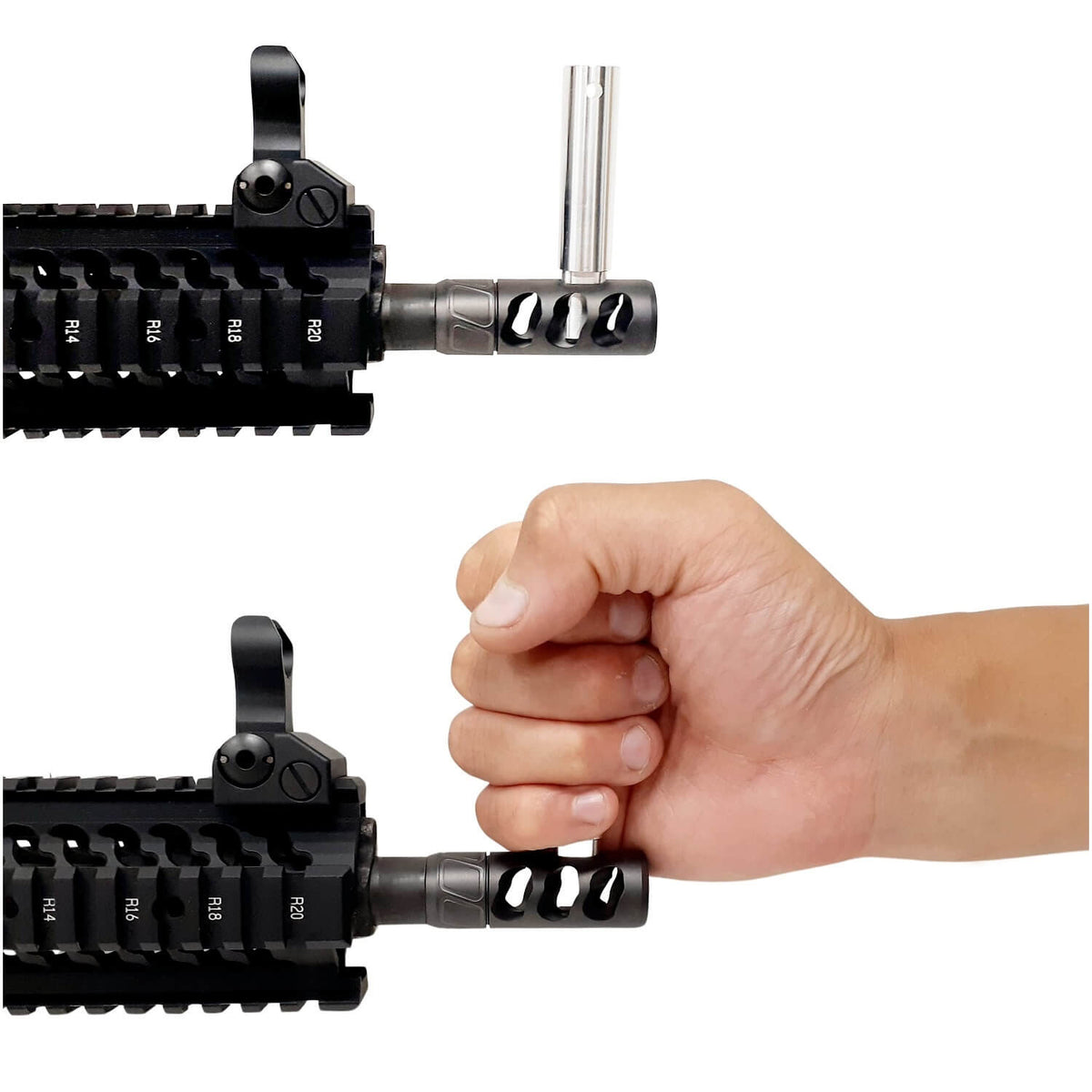

  4. Thread on the locking collar and brake, time the brake by hand, then lock it with the included tensioning key.
  5. Remove the key after tightening.

Precision machined by Spearhead Machine in Canada.
