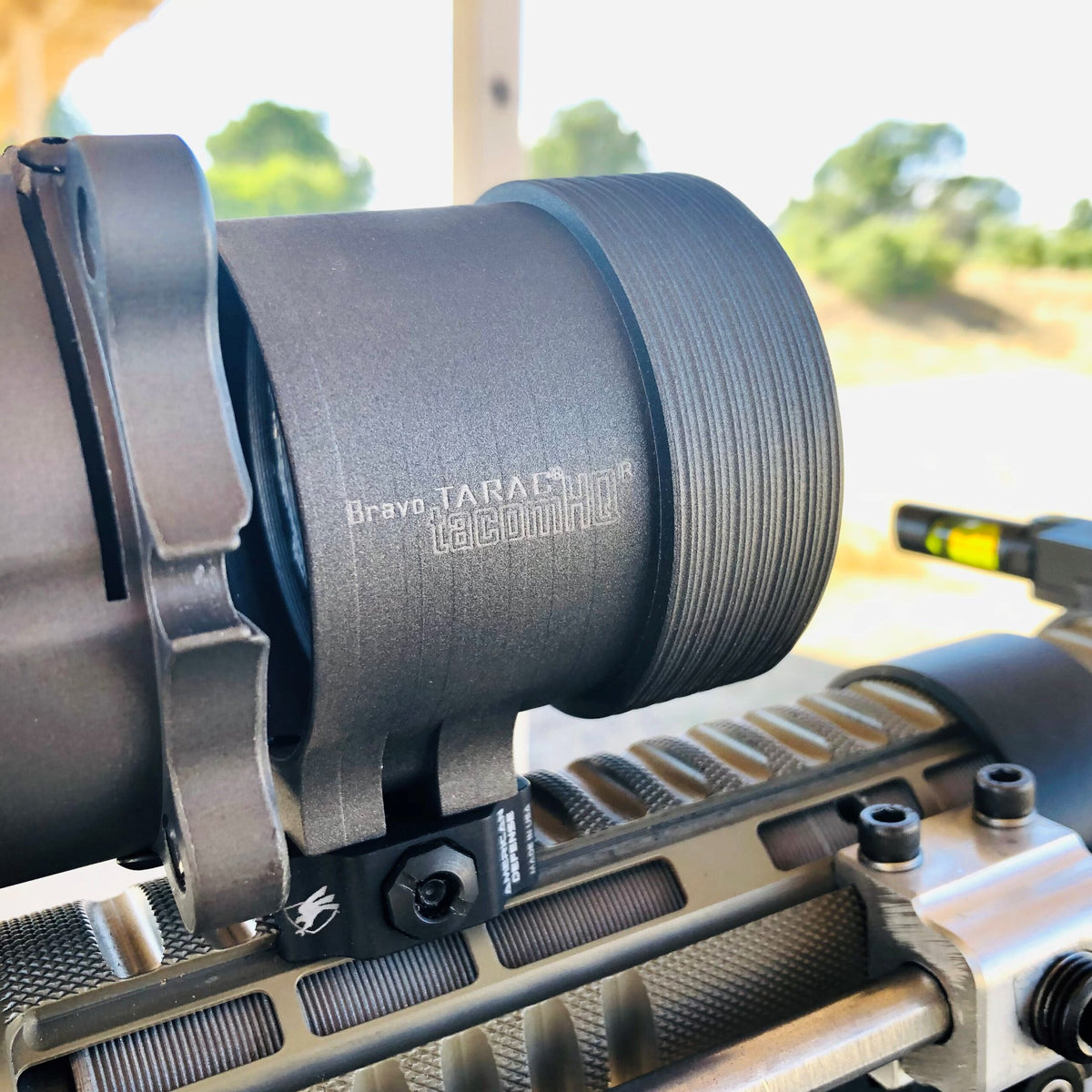

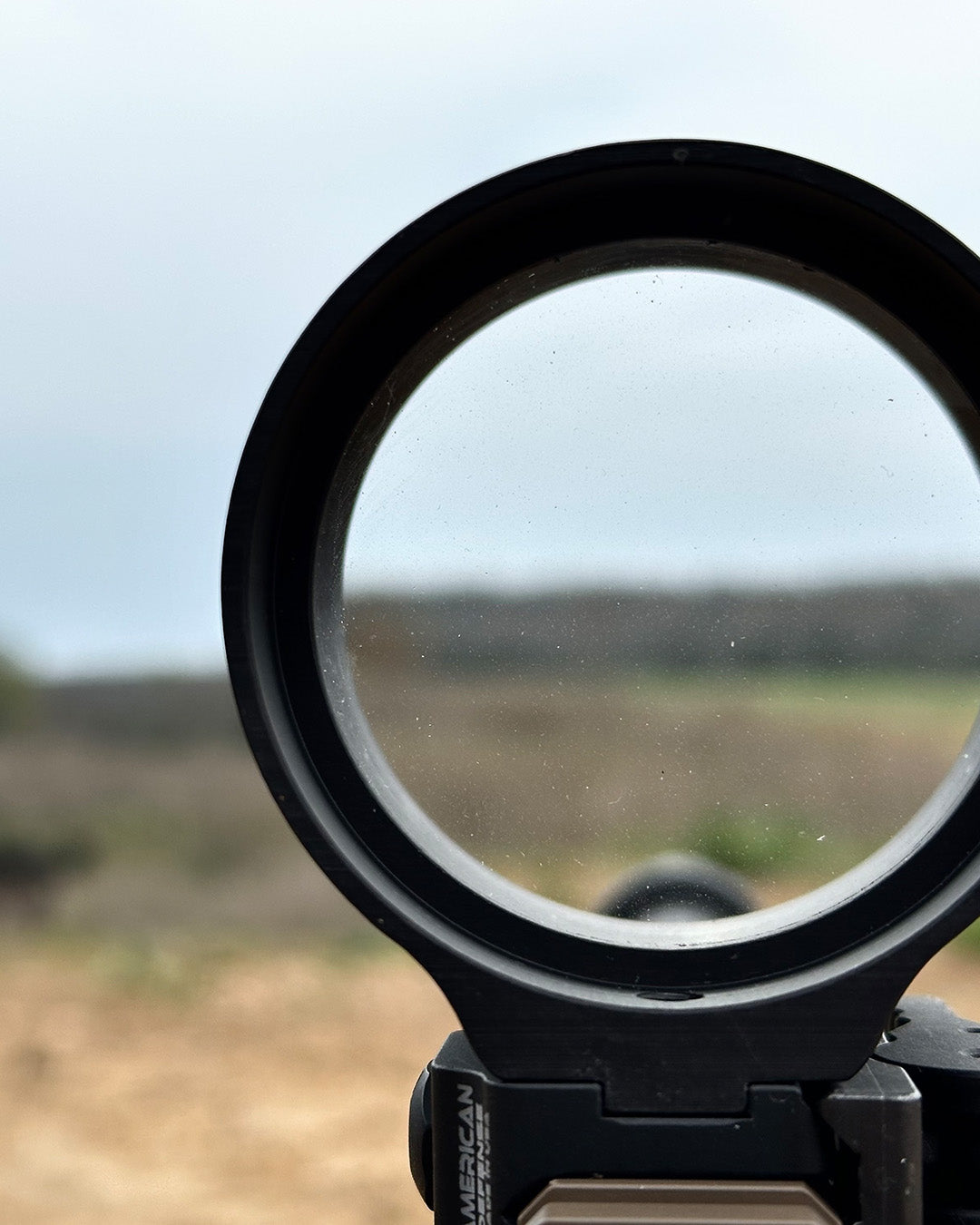

The Bravo TARAC is a prism that optically adds elevation to your riflescope, so you can hold on targets far past the scope's native travel without giving up your reticle or your zero. One Bravo adds 30 or 60 MRAD (100 or 200 MOA). It is the lightest way to push an existing ELR system further.
Why shooters run it
- Adds 30 or 60 MRAD (100 or 200 MOA) with a single optic.
- Light: the Ultra-Light 30 MRAD unit is 7.0 oz.
- Stack prisms, or flip the Magnetic model upside down, to extend the range further.*
- Detachable mount; the optic comes off without losing the rifle's setup.
- Night-vision compatible. Billet construction, 100% made in the USA.
*Example: an inverted 30 MRAD Magnetic Bravo on a 30 MRAD rail gives three working bands (0, 30 and 60 MRAD) before you dial the scope, covering 0–90 MRAD (300 MOA).
Choosing a model
- Ultra-Light: rail mount only (ADM quick-detach). Lightest option.
- Magnetic: convertible between rail mount and scope mount, and invertible.
Rail mount is a toolless quick-detach, made to sit directly in front of a scope on 1.5" rings, and works on canted rails up to 10 MRAD (40 MOA). Scope mount attaches to the scope's objective (not the sunshade). It is scope-specific, needs 0.25" (6 mm) of clearance, and a digital level or plumb bob for first setup.
Choosing a scope mount? Pick your scope's sunshade on this page and TACOM builds it into the housing, or choose to send your own. A magnetic sunshade (with or without a Tenebraex cover) is optional.
Know the limits
The scope's centerline stays where it is, so a hot barrel or suppressor can distort the image. Color separation caps the Bravo at 60 MRAD (200 MOA). If you need more elevation, a higher centerline or no color fringing, step up to the Charlie TARAC.
Specifications
| Ultra-Light dimensions (H x W x D) | 3.1" x 2.6" x 2.4" (79 x 65 x 60 mm) |
|---|---|
| Ultra-Light weight | 30 MRAD: 7.0 oz (198 g) | 60 MRAD: 9.8 oz (278 g) |
| Magnetic dimensions (H x W x D) | 3.2" x 3.5" x 2.6" (81 x 88 x 65 mm) |
| Magnetic weight, 30 MRAD | Rail 10.2 oz (289 g) | Scope 12.2 oz (343 g) |
| Magnetic weight, 60 MRAD | Rail 13.0 oz (369 g) | Scope 15.0 oz (425 g) |
| Elevation | Fixed offset: 28.8–30.8 MRAD, 99.0–105.9 MOA, 57.6–61.6 MRAD or 198.0–211.8 MOA |
| Mount | ADM QD (MIL-STD-1913 rail) or scope mount |
| Night vision / thermal | Yes / No (see Charlie TARAC) |
| Waterproof | 16 ft (5 m), salt water |
| Operating temperature | -40°F to 140°F (-40°C to 60°C) |
| Fog resistant / AR coated | Yes / Yes |
| Electronics | None |
| Construction | Billet, 100% made in the USA |
| Warranty | 5 years from TACOM (non-transferable) |
In the box
Bravo TARAC optic, ADM QD or scope mount (per your selection), Nanuk hard case (per your selection) and a desiccant bag.
Export controlled. The TARAC optic is classified EAR ECCN 0A504.g (U.S. Department of Commerce). B&B Firearms sells TARACs to U.S. customers only; TACOM does not support or warranty unauthorized exports.
